12V Front Terminal AGM VRLA Battery for Telecom & UPS – High Reliability, 12-Year Float Life, Wide Temperature Range
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview

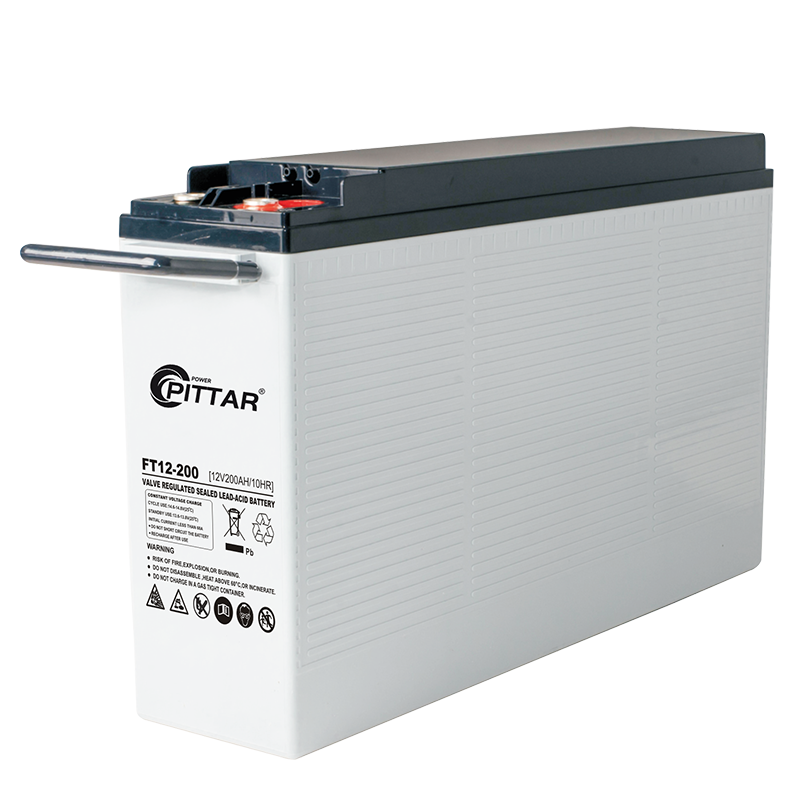

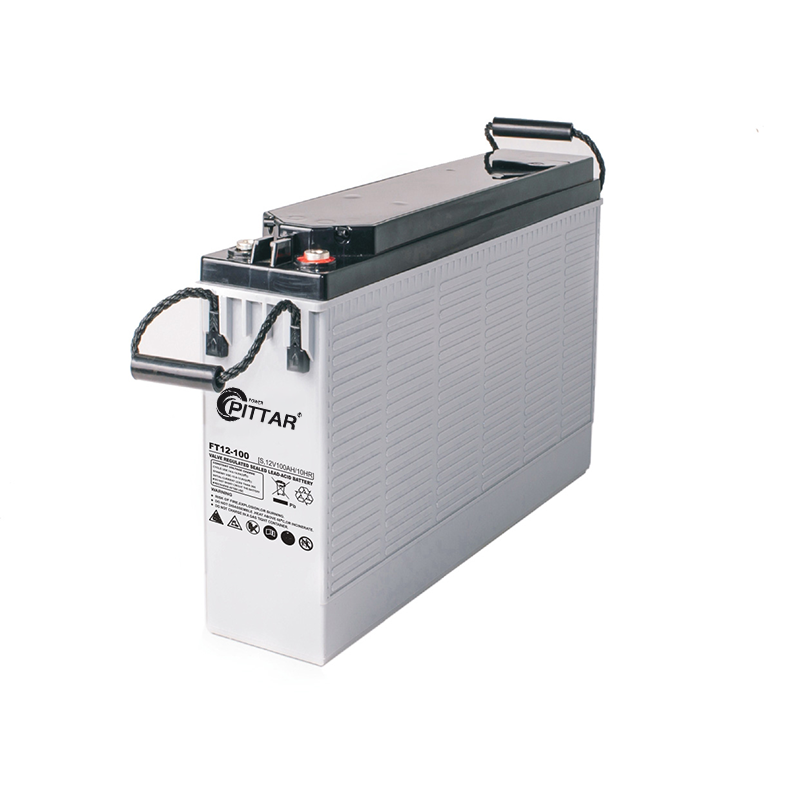

The PITTAR FT Series is a premium range of 12V Front Terminal Valve Regulated Lead Acid (VRLA) batteries, specifically engineered for high-reliability standby power applications. With a robust 12-year design life in float service, these batteries are the ideal power solution for telecommunications, UPS systems, and other critical backup scenarios.

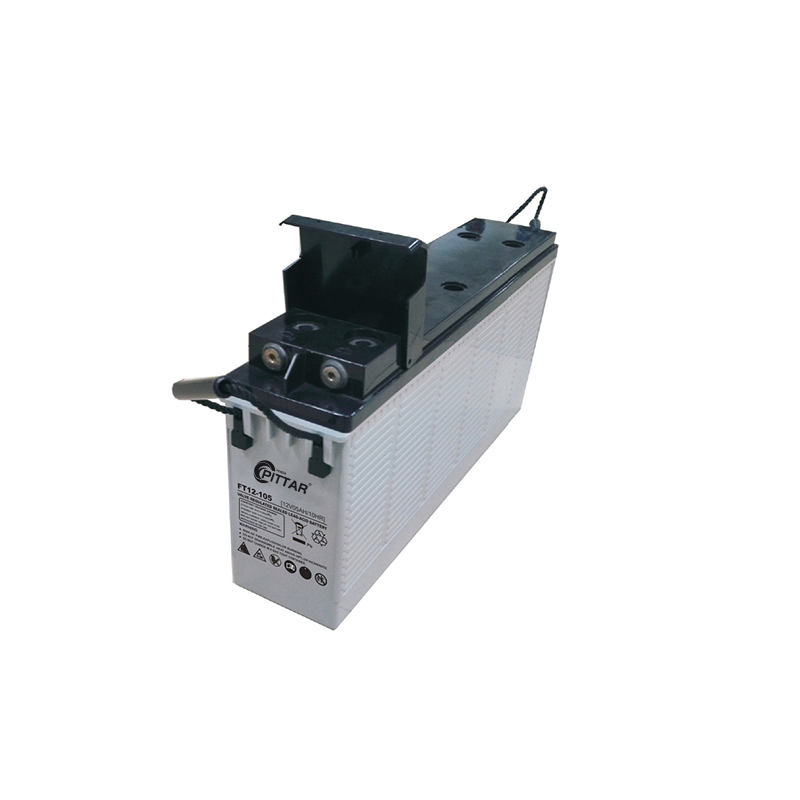

Designed for modern power systems, the FT series features a unique front terminal layout that facilitates easy installation, maintenance, and cable connection in standard 19-inch and 23-inch cabinets. The batteries utilize advanced AGM (Absorbent Glass Mat) separators with a centralized venting system, ensuring high reliability, low internal resistance, and consistent performance across the entire battery string.
Capable of delivering high surge currents on demand, the FT series offers excellent discharge performance across a wide temperature range. Combined with a very low self-discharge rate, these batteries provide dependable, long-term backup power with minimal maintenance.
Quick Detail
· Battery Type: Front Terminal (FT) Valve Regulated Lead Acid (VRLA) Battery
· Also Known As: Telecom battery, UPS battery, Standby power battery, AGM battery
· Main Applications: Designed for telecom base stations, EPS/UPS systems, and other backup power applications.
| Core Specifications | |
| Nominal Voltage: | 12V |
| Design Life: | 12 years (Float service) |
| Capacity Range: | 55Ah to 200Ah @ 10hr-rate |
| Max Discharge Current: | Up to 2000A (5 sec) |
| Operating Temperature: | -20°C to 60°C (Discharge) |
Applications
· Telecom BTS, MSC, and Data Centers
· UPS/EPS Systems
· Switchgear and Control Systems
· Emergency Lighting and Security Systems
Specifications
The core specifications for the PITTAR FT Series are listed below. For specific model details, please refer to the individual datasheets.
| Specification | Standard Parameters |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Design Life (Float) | 12 years |
| Standby Use Voltage | 13.6 V ~ 13.8 V @ 25°C |
| Cycle Use Voltage | 14.6 V ~ 14.8 V @ 25°C |
| Operating Temperature Range | Discharge: -20°C ~ 60°C Charge: 0°C ~ 50°C Storage: -20°C ~ 60°C |
| Recommended Temp. Range | 25°C ± 5°C |
| Self-Discharge | ≤ 3% per month at 25°C. Batteries can be stored up to 6 months without recharge at 25°C. |
| Container Material | A.B.S. (UL94-HB standard / UL94-V0 optional) |
| Terminal Types | F6 (M8), F11 (M6), F14 (M8), F9 (M8) |
Competitive Advantage
1. Long Service Life: 12-year float design life ensures reliable operation over the long term, reducing the total cost of ownership.
2. Excellent Reliability: Advanced AGM technology and centralized venting systems guarantee sealant integrity and high reliability for grouped installations.
3. Wide Operating Temperature: Excellent discharge performance and charge acceptance across a broad temperature range (-20°C to 60°C).
4. High Discharge Performance: Capable of delivering extremely high currents (up to 2000A for 5 seconds) for demanding backup power requirements.
5. Low Self-Discharge: Features a very low self-discharge rate, allowing for extended storage before recharging is required.
6. Flexible Installation: The front terminal design allows for quick and safe installation in standard 19" and 23" racks.
