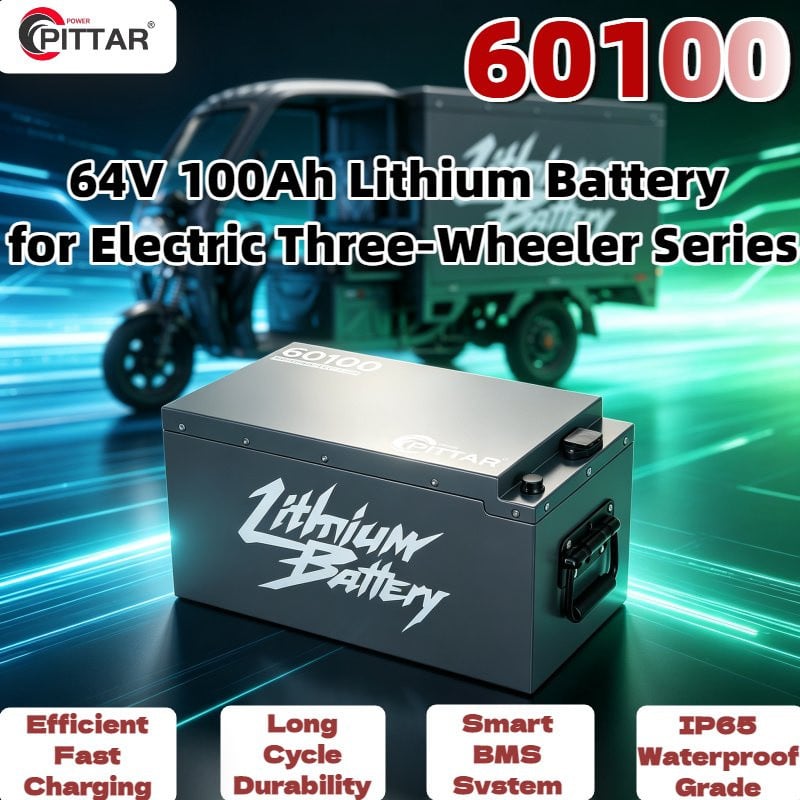

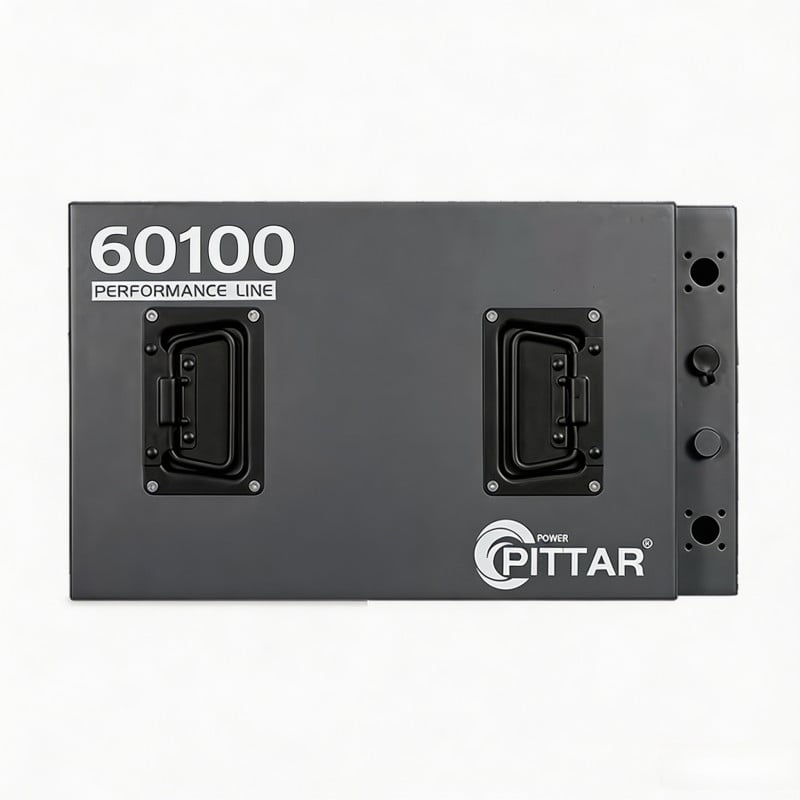

64V 100Ah LiFePO4 Lithium Battery Pack for Electric Tricycle Golf Cart NEV – PITTAR-60100
The PITTAR-60100 is a 64V 100Ah LiFePO4 battery pack for electric three-wheelers and four-wheelers. Built with Grade A cells and Jiabaida smart BMS, it delivers safe, reliable, long-lasting power.
- Overview
- Specifications
- Applications
- Competitive Advantage
- About us
- Recommended Products
Overview
Quick Detail
| Item | Description |
| Other Names | 64V 100Ah Lithium Battery, Electric Tricycle Battery, Golf Cart Battery, NEV Power Battery |
| Main Application | Electric tricycles, golf carts, NEVs, LSVs, heavy-duty e-scooters |
| Core Specs | 64V 100Ah / 6400Wh / LiFePO4 / IP65 / ≤3500W Motor / Bluetooth BMS |

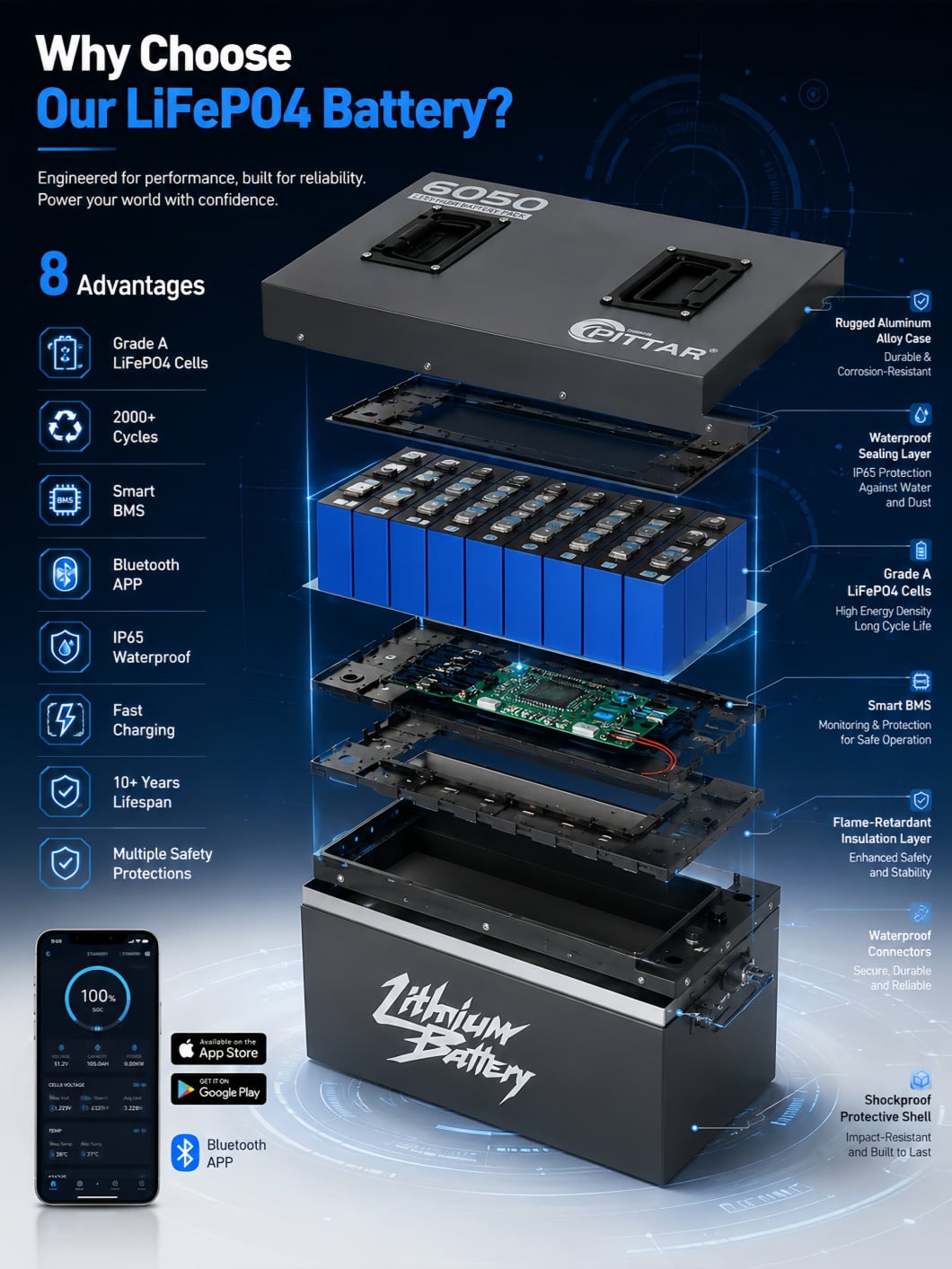

Key Features:
• High Safety – LiFePO4 chemistry, zero fire/explosion risk, 10+ years life
• Smart BMS – 8‑layer protection: overcharge, over‑discharge, overcurrent, short circuit, over/under temperature, cell balancing, load detection

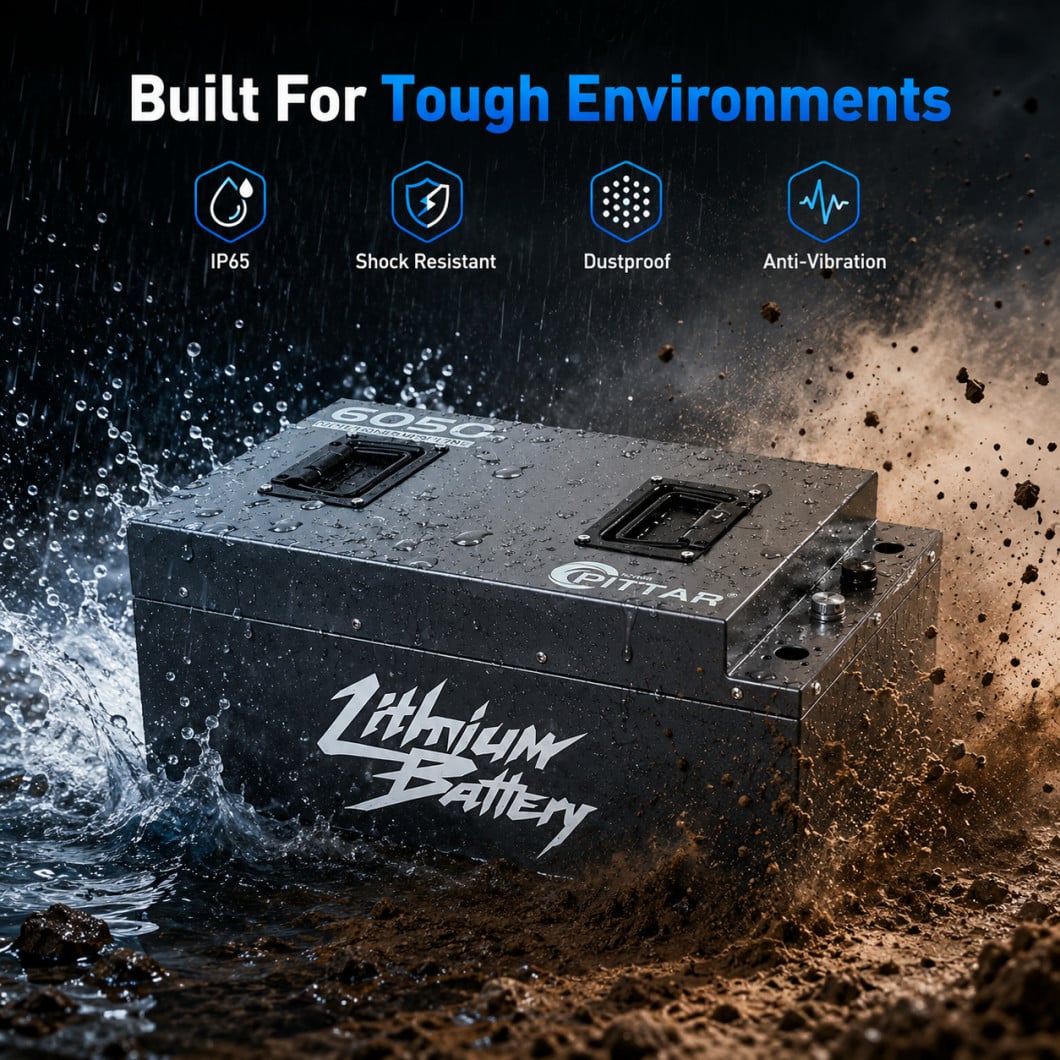

• IP65 Waterproof – Fully sealed, works in rain, dust, humidity
• 3H Fast Charging – 35A max charge, full charge in ~3 hours
• Bluetooth App – Monitor voltage, temperature, capacity, cycles via smartphone
• Flexible Comms – Bluetooth std; 1‑Wire/RS485/CAN optional
• Wide Motor Support – Compatible with motors up to 3500W

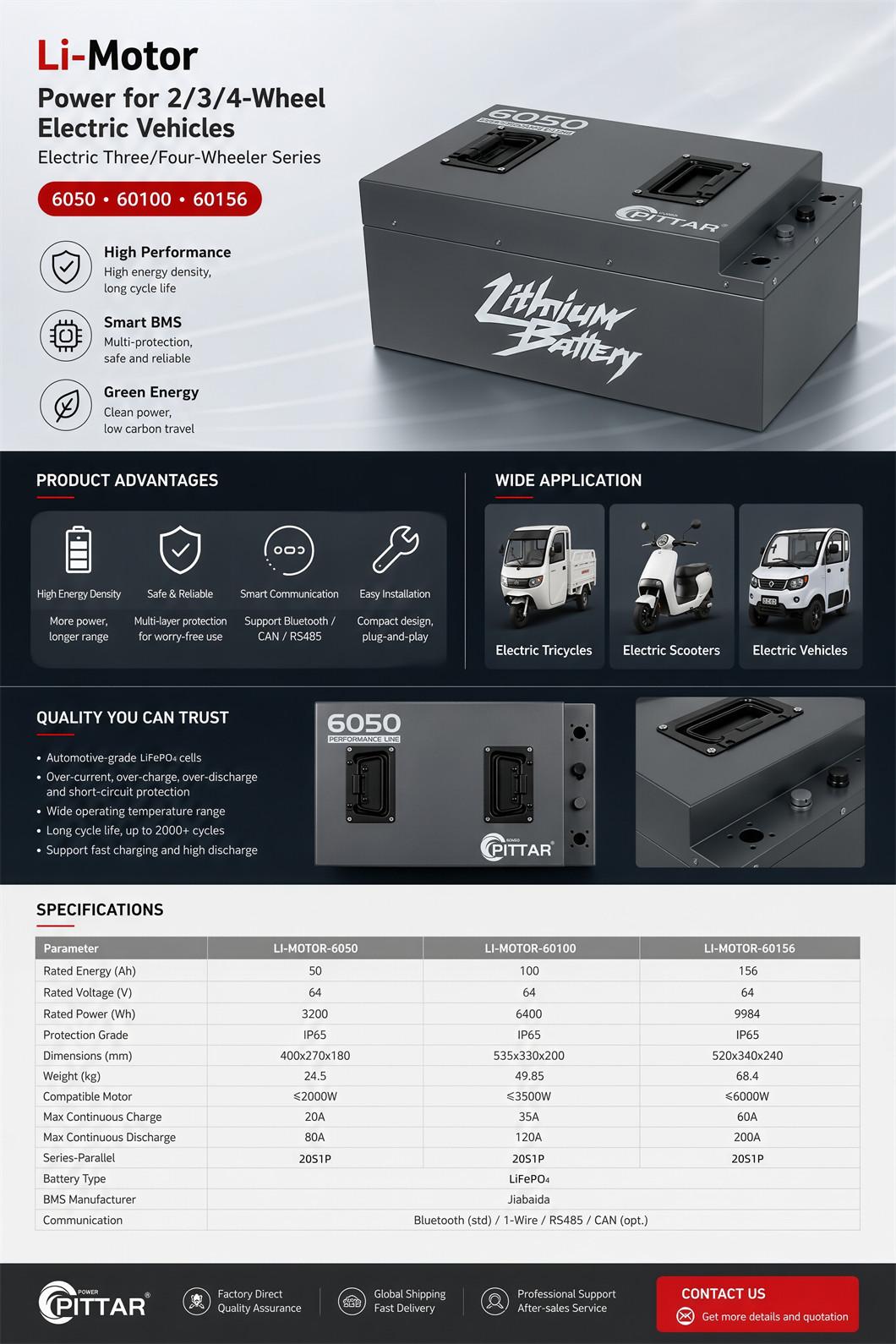

Specifications
| Parameter | PITTAR-60100 |
| Rated Capacity | 100Ah |
| Rated Voltage | 64V |
| Rated Power | 6400Wh |
| Protection | IP65 |
| Dimensions | 535 × 330 × 200 mm |
| Weight | 49.85 kg |
| Compatible Motor | ≤ 3500W |
| Max Charge / Discharge | 35A / 120A |
| Battery Type | LiFePO4 (20S1P) |
| BMS | Jiabaida Smart BMS |
| Communication | Bluetooth / 1-Wire / RS485 / CAN |
| Cycle Life | 3000+ cycles |
Applications
· Electric tricycles (cargo & passenger)
· Golf carts
· Neighborhood Electric Vehicles (NEVs)
· Low-speed vehicles (LSVs)
· Heavy-duty e-scooters & e-motorcycles
· Commercial delivery fleets
Competitive Advantage
| Advantage | Benefit |
| Grade A LiFePO4 Cells | 3000+ cycles, 10+ years |
| Bluetooth Smart BMS | Real-time monitoring |
| IP65 Rated | Works in all weather |
| 3-Year Warranty | Business peace of mind |
| 3H Fast Charging | Less downtime |
| Factory Direct | Competitive pricing |
