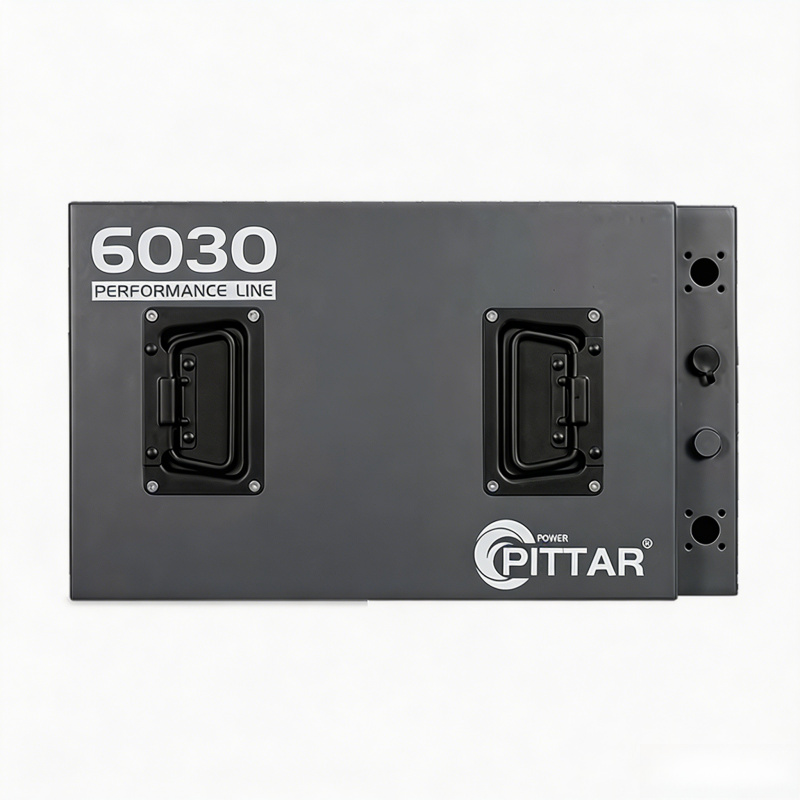

64V 30Ah LiFePO4 Lithium Battery Pack for Electric Scooter E-Bike – PITTAR-6030
The PITTAR-6030 is a 64V 30Ah LiFePO4 battery pack for electric scooters and light e-bikes. Built with Grade A cells and Jiabaida smart BMS, it delivers safe, reliable, long-lasting power.
- Overview
- Specifications
- Applications
- Competitive Advantage
- About us
- Recommended Products
Overview
Key Features:
• High Safety – LiFePO4 chemistry, zero fire/explosion risk, 10+ years life
• Smart BMS – 8‑layer protection: overcharge, over‑discharge, overcurrent, short circuit, over/under temperature, cell balancing, load detection
• IP65 Waterproof – Fully sealed, works in rain, dust, humidity
• 3H Fast Charging – 15A max charge, full charge in ~3 hours
• Bluetooth App – Monitor voltage, temperature, capacity, cycles via smartphone
• Flexible Comms – Bluetooth std; 1‑Wire/RS485/CAN optional
• Compact & Light – 14.2 kg, easy to install and carry
Specifications
| Parameter | PITTAR-6030 |
| Rated Capacity | 30Ah |
| Rated Voltage | 64V |
| Rated Power | 1920Wh |
| Protection | IP65 |
| Dimensions | 300 × 180 × 170 mm |
| Weight | 14.2 kg |
| Compatible Motor | ≤ 1800W |
| Max Charge / Discharge | 15A / 50A |
| Battery Type | LiFePO4 (20S1P) |
| BMS | Jiabaida Smart BMS |
| Communication | Bluetooth / 1-Wire / RS485 / CAN |
| Cycle Life | 3000+ cycles |
Applications
· Electric scooters
· E-bikes (electric bicycles)
· Light electric two-wheelers
· Small electric three-wheelers
· Last-mile delivery vehicles
Competitive Advantage
| Advantage | Benefit |
| Grade A LiFePO4 Cells | 3000+ cycles, 10+ years |
| Bluetooth Smart BMS | Real-time monitoring |
| IP65 Rated | Works in all weather |
| 3-Year Warranty | Business peace of mind |
| 3H Fast Charging | Less downtime |
| Lightweight Design | Easy installation & portability |
