12.8V 100Ah LiFePO4 Battery LK12.8-100 SLA Replacement Lithium Battery
1280Wh Deep Cycle Drop-in Replacement for Lead Acid For Solar UPS Off-Grid Systems EV
- Overview
- Description:
- Applications:
- Specifications:
- Competitive Advantage:
- Tag:
- Recommended Products
Overview
| Item | Details |
|---|---|
| Place of Origin: | China |
| Brand Name: | POWERPITTAR |
| Model Number: | LK12.8-100 (PT12.8-100) |
| Certification: | CE |
Description:
Experience the next generation of energy storage with the POWERPITTAR® LK12.8-100 LiFePO4 battery. This high-performance SLA replacement lithium battery is engineered to be the perfect upgrade over traditional sealed lead-acid batteries in demanding 12V systems. It is a 100% drop-in replacement, meaning it fits into the same space and uses the same chargers with minimal configuration.
By switching to the LK12.8-100, you gain exceptional advantages: a dramatic weight reduction of approximately 60%, a doubled power output, and an unparalleled cycle life exceeding 4000 cycles at 100% Depth of Discharge (DOD) . The advanced internal Smart Battery Management System (BMS) ensures safety against overcharging, over-discharging, over-current, and short circuits, while the stable LiFePO4 chemistry eliminates any risk of explosion or combustion. Its modular design also allows flexible configuration, supporting up to 4 batteries in series and up to 4 in parallel to meet your specific voltage and capacity requirements.
Applications:
- Solar / Wind Energy Storage Systems (Off-Grid & On-Grid)
- UPS (Uninterruptible Power Supply) and Backup Power
- Electric Vehicles (EV) and Electric Mobility
- Telecommunication Base Stations
- Medical Equipment
- Lighting Systems (Solar Street Lights, etc.)
- Marine and RV (Recreational Vehicle) Applications

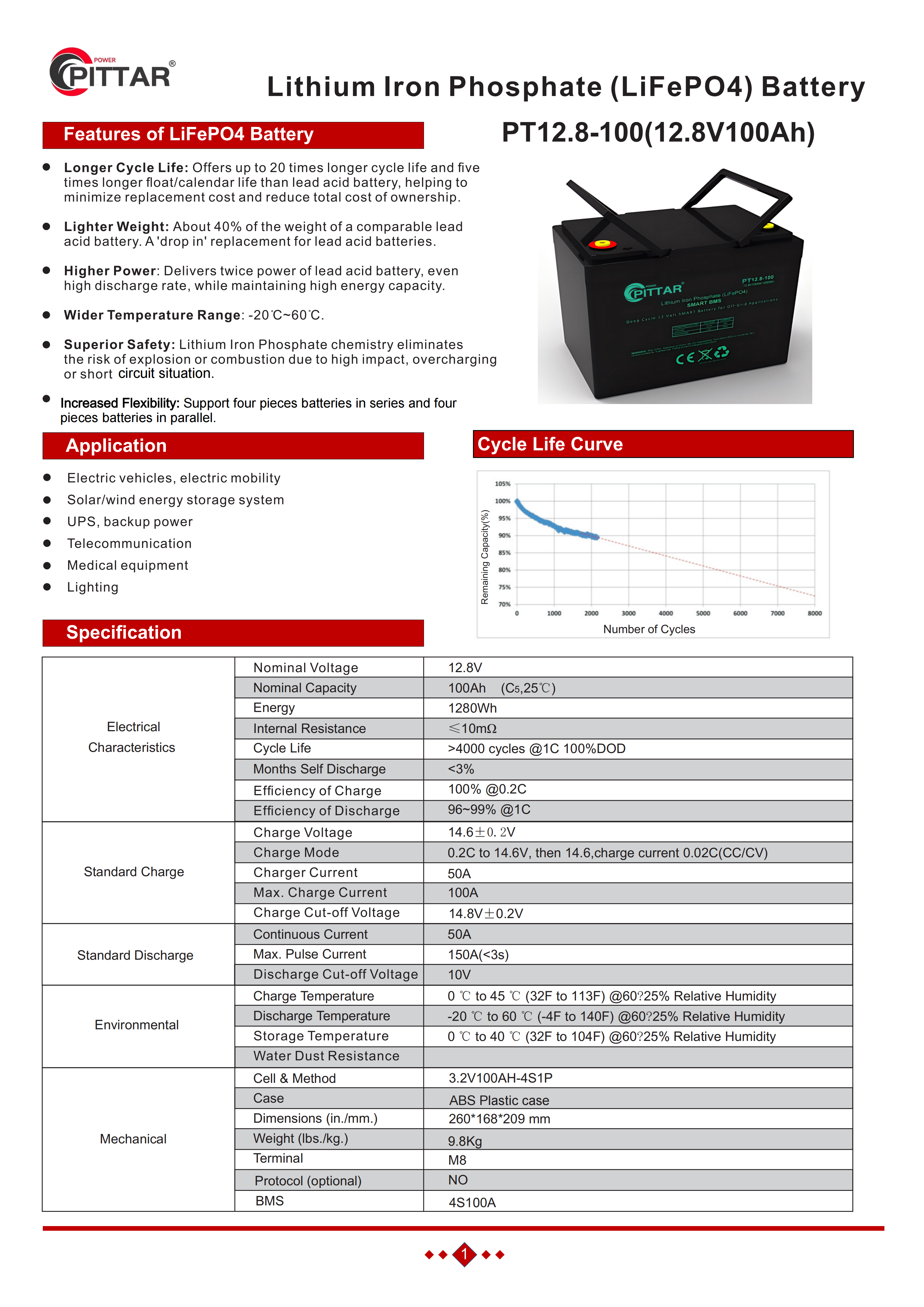

Specifications:
| Item | Specification |
|---|---|
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah (C5, 25°C) |
| Energy | 1280Wh |
| Cycle Life | > 4000 cycles @ 1C 100% DOD |
| Internal Resistance | ≤ 10 mΩ |
| Charge Efficiency | 100% @ 0.2C |
| Discharge Efficiency | 96~99% @ 1C |
| Self-Discharge | < 3% per month |
| Standard Charge Voltage | 14.6±0.2V |
| Charge Cut-off Voltage | 14.8±0.2V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Continuous Discharge Current | 50A |
| Max. Pulse Discharge Current | 150A (<3s) |
| Discharge Cut-off Voltage | 10V |
| Discharge Temperature | -20°C ~ 60°C |
| Charge Temperature | 0°C ~ 45°C |
| Storage Temperature | 0°C ~ 40°C |
| Case Material | ABS Plastic |
| Cell Configuration | 3.2V100AH-4S1P |
| Dimensions (LWH mm) | 260 * 168 * 209 mm |
| Weight | 9.8 Kg |
| Terminal Type | M8 |
| Safety Features | Overcharge, Over-discharge, Over-current, Short Circuit Protection (via SMART BMS) |
Competitive Advantage:
- Cost-Effective: With over 4000 cycles, this battery can last over 10 years, offering a much lower cost per cycle compared to traditional lead-acid solutions.
- Safety First: The safest lithium chemistry on the market (LiFePO4), combined with a robust SMART BMS for complete protection.
- User-Friendly: Truly a "drop-in" replacement for your 12V SLA system. No complicated wiring changes or software updates needed.
- Ultra-Low Self-Discharge: At less than 3% per month, the battery can be stored for extended periods without significant power loss.
- Global Certifications: CE certified, meeting international standards for quality and safety.
- Scalable Design: Easily expand your system by connecting up to 4 batteries in series or up to 4 in parallel for higher voltage or capacity.
