DIN55 12V 55Ah Sealed Maintenance Free Car Battery – DIN Standard, Compact & Reliable Starting Power
High-Performance Automotive Battery for Passenger Cars – Maintenance-Free, Long Shelf Life, Strong Cranking Performance
- Overview
- Specifications
- Competitive Advantage
- About us
- Recommended Products
Overview
Description

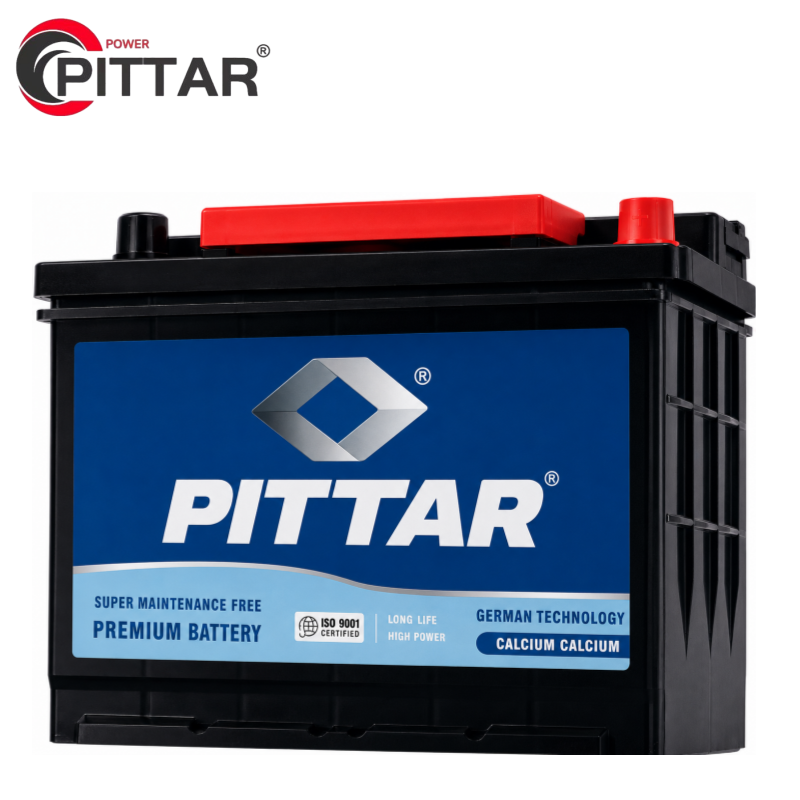

The PITTAR DIN55 is a reliable 12V sealed maintenance free automotive battery designed for starting, lighting, and ignition (SLI) systems. It features expanded lead-calcium alloy grids and advanced glass fiber separators, ensuring excellent high-current discharge characteristics, low self-discharge, strong cranking performance, and long shelf life. The completely sealed design eliminates the need for water addition, making it safe, clean, and maintenance-free. With a heat-sealed polypropylene container and anti-vibration construction, this battery prevents leakage and withstands various road conditions. The magic-eye indicator allows easy checking of charging status. Ideal for DIN standard applications with a constant charging voltage system of 13.5V–13.8V.
Quick Detail
| Brand Name: | PITTAR |
| Model Number: | DIN55 |
| DIN Group No.: | L2 |
| Type: | Sealed Maintenance Free (SMF) Automotive Battery |
| Voltage: | 12V |
| Capacity (20HR): | 55Ah |
| Reserve Capacity (RC): | 93 mins |
| Standard: | DIN (German Institute for Standardization) |
| Terminal Layout: | 0 (Left Positive) |
| Terminal Type: | B |
| Dimensions (L×W×H×TH): | 240 × 175 × 190 × 190 mm |
| Weight (±3%): | 14.6 kg |
| Hold‑Down: | B1/B3 |
| Certification: | ISO9001, ISO14001, UL, CE, GB/T 5008‑2023 |
| Application: | Passenger cars, sedans, light commercial vehicles |
Specifications
| Parameter | Value |
| Model | DIN55 |
| DIN Group No. | L2 |
| Standard | DIN (German Standard) |
| Voltage | 12V |
| Capacity (20HR) | 55Ah |
| Reserve Capacity | 93 mins |
| Length | 240 mm |
| Width | 175 mm |
| Height | 190 mm |
| Total Height | 190 mm |
| Weight (±3%) | 14.6 kg |
| Layout | 0 (Left Positive) |
| Terminal | B |
| Hold-Down | B1/B3 |
| Pallet Qty | 168 pcs |
| Cover Material | PP |
| Operating Temperature | -40°C to +60°C |
| Optimum Temperature | +10°C to +30°C |
Competitive Advantage
25 Years of Experience: 4 production bases, 13 million KVAH annual capacity.
Global Standards: Meets JIS, EN, BCI, AS, and SA standards.
Advanced Manufacturing: Imported automatic lines from Canada, Italy, Korea, and Germany.
Certified Quality: ISO9001, ISO14001, UL, CE, ROHS approved.
Overseas Sales: Over 60% of products exported worldwide.
