Tracer Dream Series MPPT Solar Charge Controller | 12V/24V/48V Auto | Max 200V PV Input | 50A-100A | High Efficiency 98.5% | 3-Year Warranty
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview

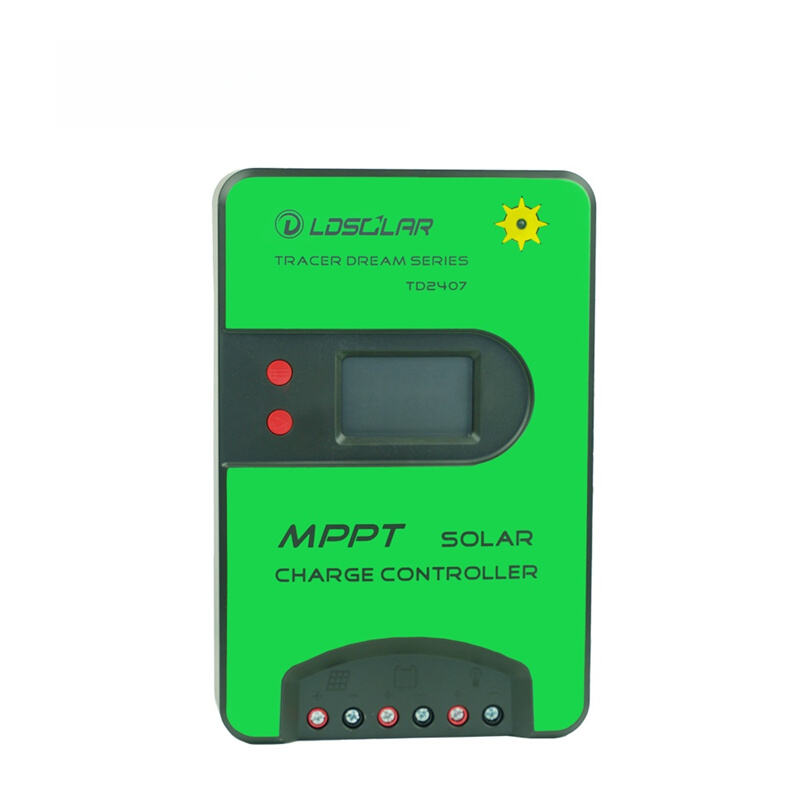

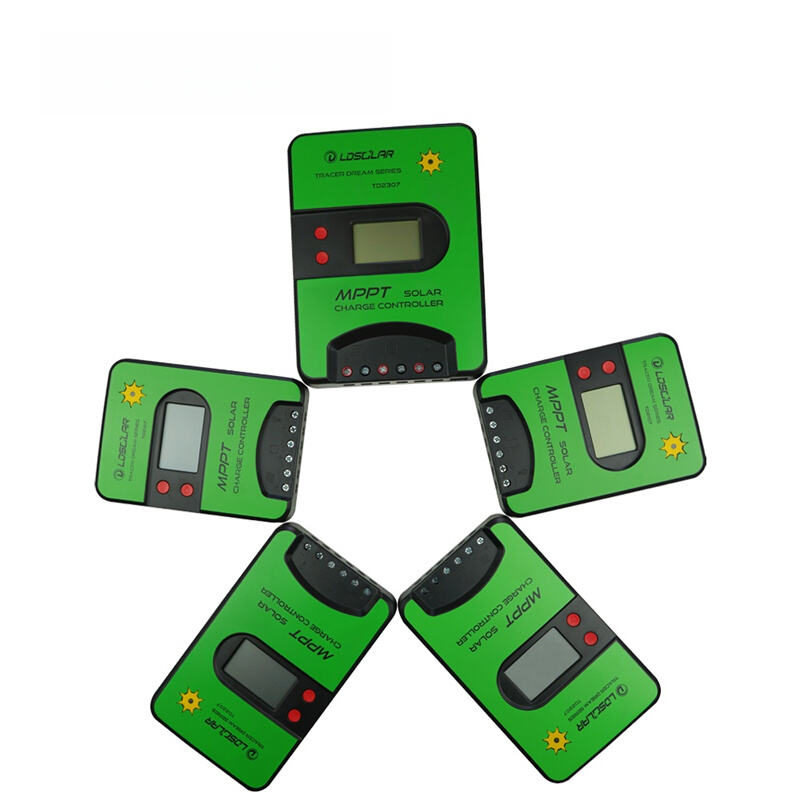

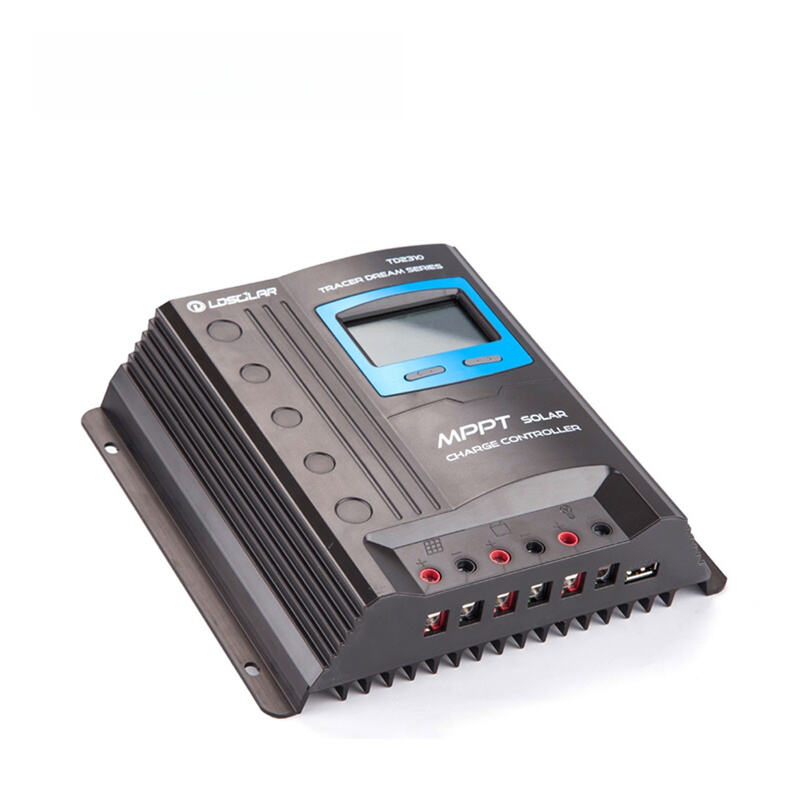

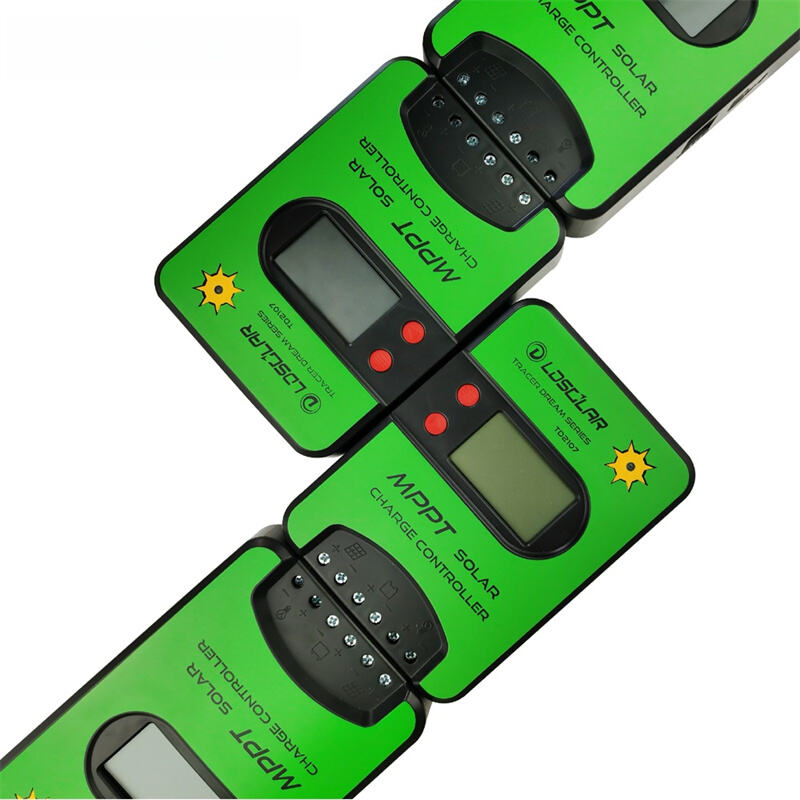

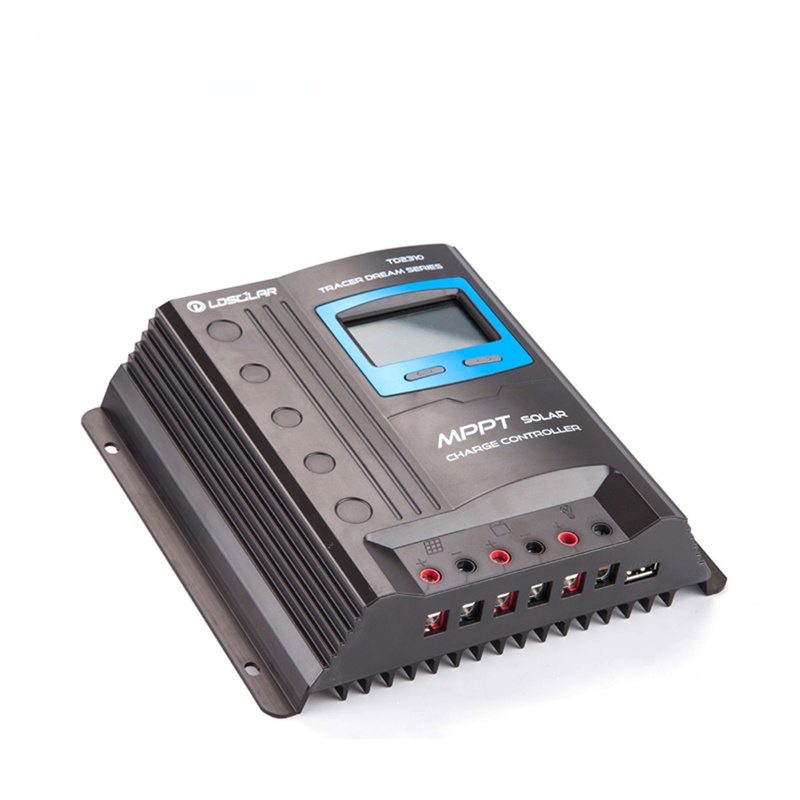

The Tracer Dream Series MPPT Solar Controller is a high-performance solar charge regulator designed for maximum energy harvest and system reliability. Utilizing advanced MPPT (Maximum Power Point Tracking) technology with synchronous rectification, this controller boasts a tracking efficiency of ≥99.5% and a maximum conversion efficiency of 98.5%, significantly outperforming traditional PWM controllers by 20%-30%.
Equipped with a high-quality 32-bit ARM core MCU, it ensures fast and stable tracking of the maximum power point within 10-20 seconds, even under rapidly changing sunlight or low-light conditions. The controller also features dual-peak and multi-peak tracking technology, ensuring it accurately finds the maximum power point even when solar panels are partially shaded or damaged.
This controller supports a wide range of battery types including Sealed, Gel, Flooded, and Lithium (LiFePO4 & Ternary Lithium), offering flexible charging profiles. It comes with 16 comprehensive safety protections and a common negative design for enhanced safety with solar starting capability. Remote monitoring is made easy with standard built-in Bluetooth or optional WiFi module via the iConnect App.
Quick Detail
· Also known as: MPPT Solar Regulator, Solar Charge Controller, PV Charge Controller.
· Main Application: Solar Home System, RV, Marine, Communication Base Station, Solar Street Light, Off-grid Power System.
· Core Specs: System Voltage: 12V/24V/48V Auto; Max. PV Voltage: up to 200V; Charge Current: 50A / 60A / 80A / 100A.
Applications
· Solar RV / Caravan / Camper Systems
· Residential Solar Home Systems
· Solar Street Lighting
· Telecom & Communication Base Stations
· Marine & Boat Power Systems
· Off-grid Power Stations
· Solar Generator Systems
Specifications
| Parameter | 75V Series | 100V TU Series | 150V TU Series | 200V Pro Series | F Series |
| Max. PV Voltage | 75V | 100V | 150V | 200V | 150V / 200V |
| Rated Current | 15A / 20A / 30A | 20A / 30A / 40A | 50A / 60A | 60A / 80A / 100A | 60A ~ 120A |
| System Voltage | 12V / 24V | 12V / 24V | 12V / 24V / 48V | 12V / 24V / 48V | 12V / 24V / 48V |
| Charge / Discharge | Both | Both | Charge Only | Charge Only | Charge Only |
| USB Output | 2A USB * 2 | 1A USB * 1 (20A/30A) | None | None | None |
| Cooling Method | Passive (Aluminum) | Passive (Aluminum) | Passive (Aluminum) | Passive (Aluminum) | Active (Fan) |
| Dry Contact | None | None | 1 Dry Contact | 2 Dry Contacts | None |
Competitive Advantage
1. High Efficiency & Energy Saving: MPPT technology increases energy utilization by 20%-30% compared to PWM controllers, saving you money on panel costs and delivering more power to your batteries.
2. Exceptional Quality: Uses high-quality components from STMicroelectronics, Samsung, and Toshiba. Features an industrial-grade aluminum alloy radiator for superior heat dissipation, ensuring long-term stable performance.
3. Comprehensive Safety: Equipped with 16 safety protections, including overload, short circuit, reverse polarity, over-temperature, and lightning protection, guaranteeing safe operation in various environments.
4. Smart Monitoring: Standard Bluetooth module allows for real-time data monitoring and parameter setting via a free smartphone App. Optional WiFi enables remote control without distance limits.
5. Reliable After-Sales: 3-year factory warranty for all MPPT controllers. We promise full power, no fake marks, and a "Fake one, fine 100,000 RMB" commitment. Non-artificial failures within warranty are replaced free of charge.
