LiFePO4 Lithium Battery Pack for Electric Three/Four-Wheelers 64V 50Ah – 156Ah High Capacity & Heavy Duty
LiFePO4 Lithium Battery Pack for Electric Three/Four-Wheelers 64V 50Ah – 156Ah High Capacity & Heavy Duty
- Overview
- Quick Details
- Specifications
- Description
- Applications:
- Competitive Advantage:
- Recommended Products
Overview
Quick Details
| Place of Origin | China |
|---|---|
| Brand Name | Pittar |

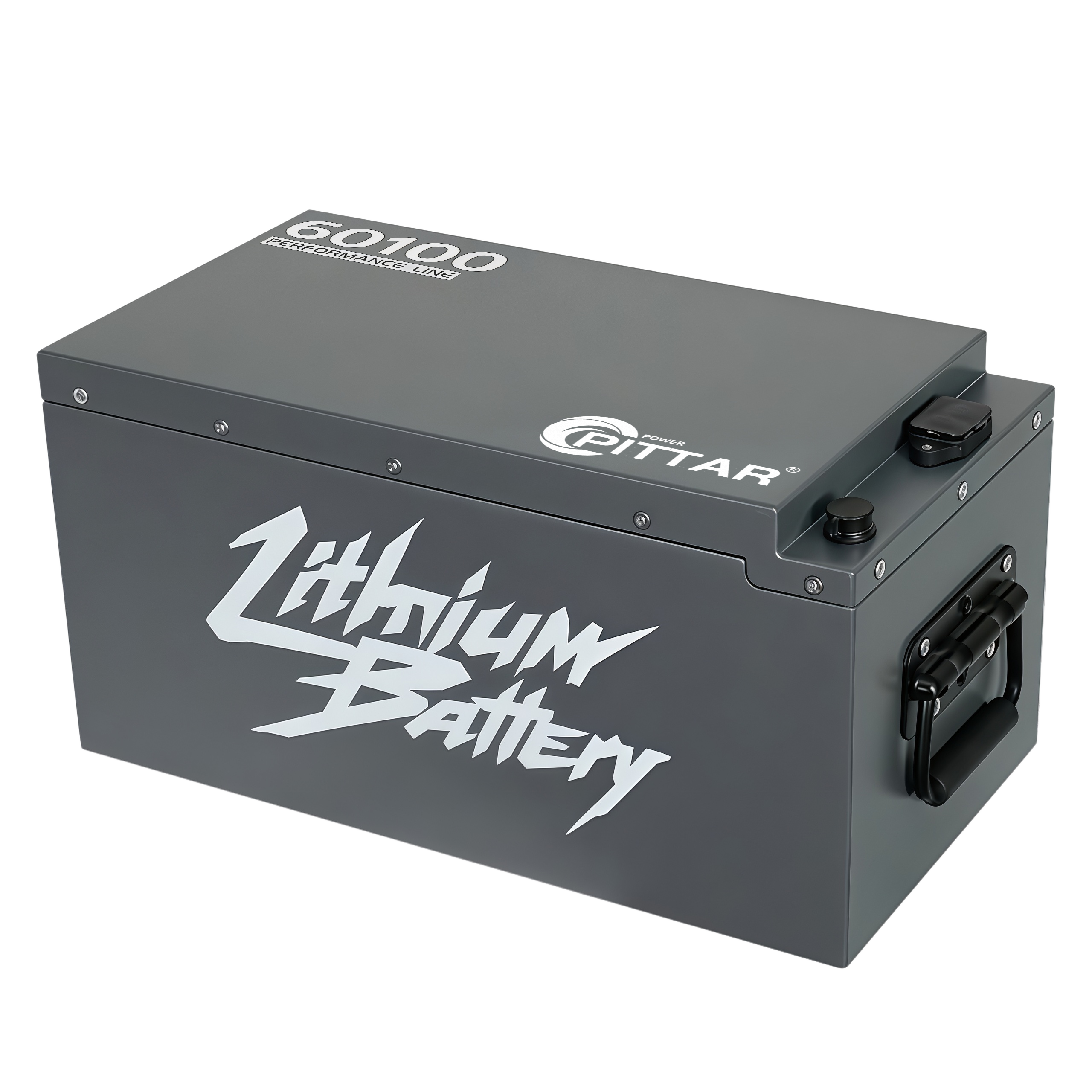

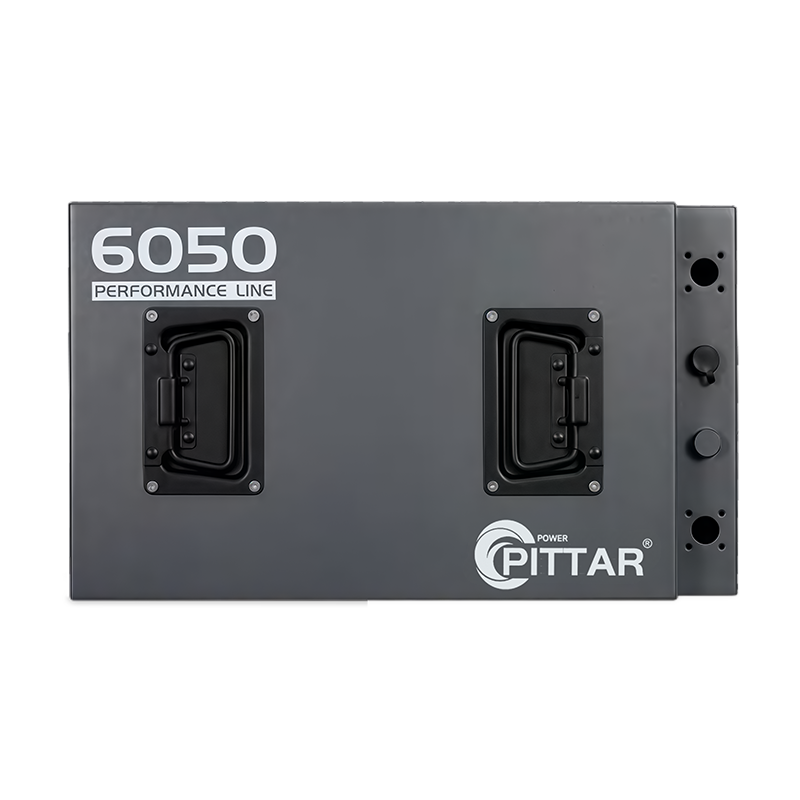

| Model Number | LI-MOTOR-6050 / LI-MOTOR-60100 / LI-MOTOR-60156 |
| Certification | CE, RoHS (Assumed based on standard export requirements) |
Specifications
| Parameter | LI-MOTOR-6050 | LI-MOTOR-60100 | LI-MOTOR-60156 |
|---|---|---|---|
| Rated Voltage | 64V | 64V | 64V |
| Rated Capacity | 50Ah | 100Ah | 156Ah |
| Rated Power | 3200Wh | 6400Wh | 9984Wh |
| Compatible Motor | ≤2000W | ≤3500W | ≤6000W |
| Protection Grade | IP65 | IP65 | IP65 |
| Max Continuous Charge | 20A | 35A | 60A |
| Max Continuous Discharge | 80A | 120A | 200A |
| Dimension (mm) | 400x270x180 | 535x330x200 | 520x340x240 |
| Weight (kg) | 24.5 | 49.85 | 68.4 |
| Battery Type | LiFePO₄ | LiFePO₄ | LiFePO₄ |
| Communication | Bluetooth (std) / 1-Wire / RS485 / CAN (opt.) |
Description
Power Your Heavy-Duty EV with Li-Motor’s High-Capacity Lithium Battery Series
Li-Motor is a leading brand dedicated to providing safe, reliable, and practical electric lithium battery solutions for 2/3/4-wheel electric vehicles. Our Electric Three/Four-Wheeler Series (models LI-MOTOR-6050, 60100, and 60156) is engineered for high-demand applications, delivering massive power, long range, and exceptional durability for commercial and utility vehicles.
Key Features & Competitive Advantages:
- Ultra-Safe LiFePO₄ Chemistry: Unlike standard lithium-ion batteries, LiFePO₄ offers superior thermal and chemical stability, ensuring maximum safety for you and your passengers, even under heavy loads.
- High Capacity & Long Range: With capacities ranging from 3200Wh to 9984Wh, this series provides enough energy for a full day of work, touring, or cargo transport without frequent recharging.
- Powerful Discharge Capability: Supports high continuous discharge currents of up to 200A, delivering strong torque and climbing ability for motors up to 6000W.
- Smart BMS Protection: Each pack features an intelligent Jiabaida BMS that monitors voltage, current, and temperature in real-time, preventing overcharge, over-discharge, overcurrent, and short circuits.
- IP65 Protection Grade: Fully protected against dust ingress and low-pressure water jets, making it suitable for outdoor use in various weather conditions.
- Smart App Control: Standard Bluetooth connectivity allows you to monitor battery status (voltage, capacity, temperature) directly from your smartphone.
- Flexible Communication: Supports 1-Wire / RS485 / CAN bus (optional) for seamless integration with the vehicle’s main controller and fleet management systems.
- Long Service Life: Designed for up to 10+ years of service life with high charge-discharge cycles, significantly reducing total cost of ownership.
Applications:
- Electric Golf Carts
- Neighborhood Electric Vehicles (NEVs)
- Low-Speed Vehicles (LSVs)
- Electric Tricycles (Cargo & Passenger)
- Small Utility Vehicles
- Electric Buggies & Campus Shuttles
- Solar Energy Storage Systems
Competitive Advantage:
- High Energy Density: More power in a compact, lightweight package compared to lead-acid alternatives.
- 10+ Year Lifespan: Superior cycle life reduces long-term replacement costs.
- Smart Monitoring: Bluetooth app control for real-time battery management and diagnostics.
- Robust Build: IP65 rating ensures reliable performance in diverse environments.
- Flexible Integration: Multiple communication protocols available for OEM and aftermarket systems.
