PITTAR RL Series 2V 200Ah-3000Ah VRLA AGM Battery, 20 Years Design Life, Telecom & UPS Backup Power
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview

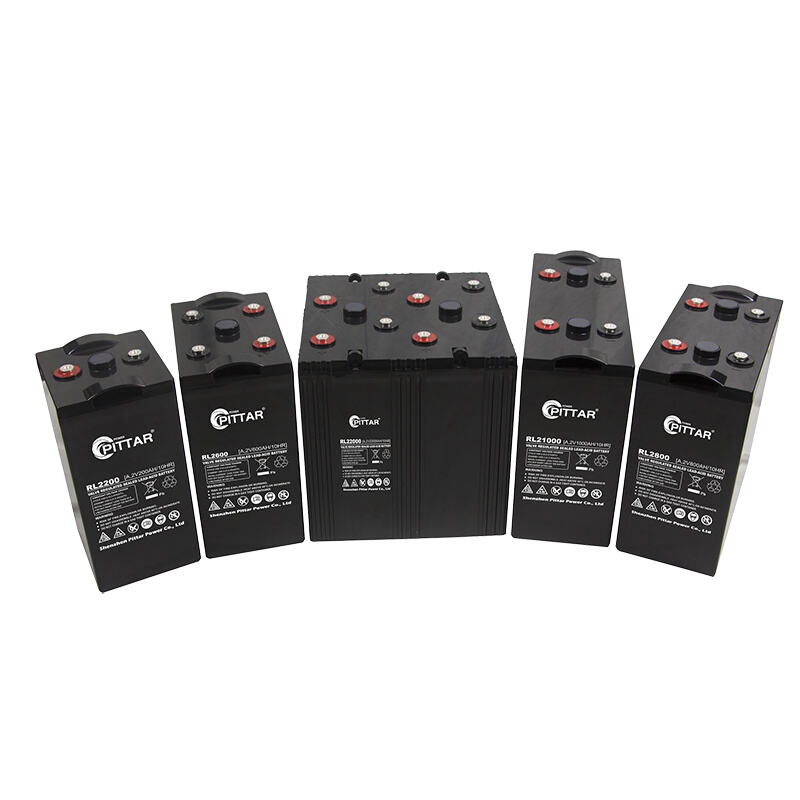

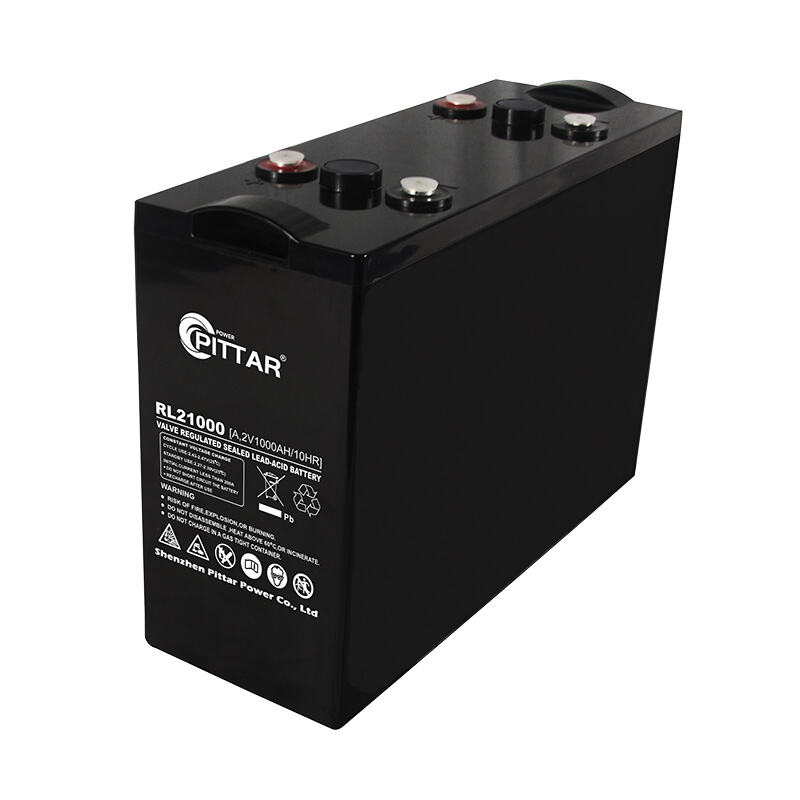

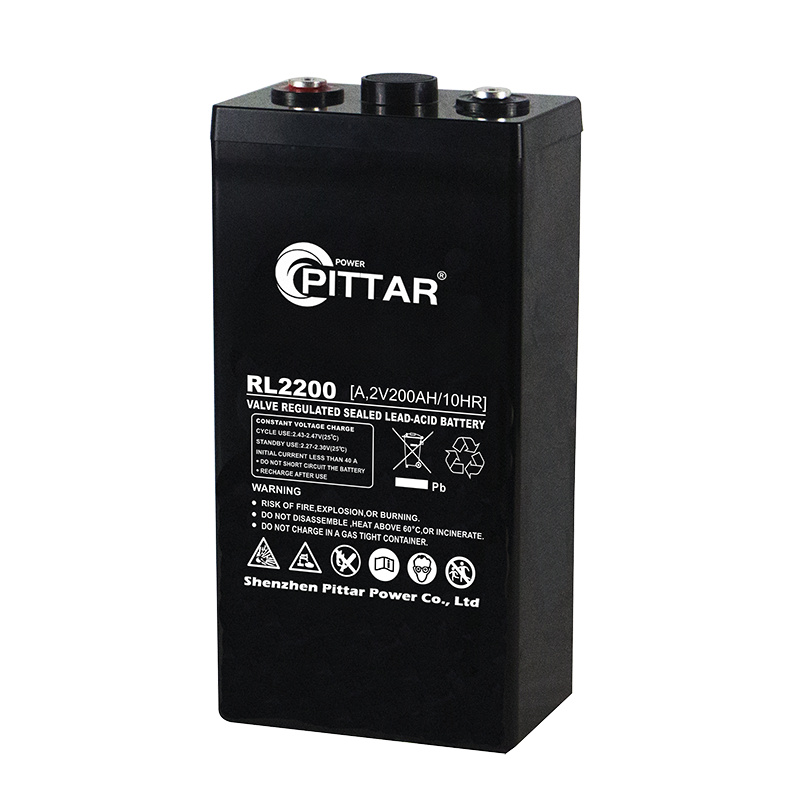

The PITTAR RL Series is a premium range of 2-volt, valve-regulated lead-acid (VRLA) batteries, engineered for demanding standby power applications. Featuring an industry-leading 20-year design life in float service, the RL series offers unmatched reliability and total cost of ownership. By combining heavy-duty grids, thicker plates, special corrosion-resistant additives, and advanced AGM technology, these batteries deliver consistent, stable performance over decades of service.
The innovative grid design significantly reduces internal resistance, resulting in high specific energy density and superior high-rate discharge characteristics. This makes the RL series exceptionally suited for applications requiring a strong, instantaneous power surge. The batteries are maintenance-free, have a low self-discharge rate, and are built to operate reliably in a wide range of environmental conditions. Whether used for communication backup power or UPS/EPS systems, the PITTAR RL series provides a dependable, long-term power solution.
Quick Detail
· Other Names: 2V Lead Acid Battery, Stationary Battery, Long Life Battery, Backup Power Battery
· Main Application: Telecom base stations, UPS/EPS systems, emergency lighting, security systems, and general standby power.
· Core Specs: 2V single cell, capacity from 200Ah to 3000Ah (C10), 20-year float design life, AGM technology, low internal resistance.
Applications
· Communication Back-up Power (Telecom BTS, Data Centers)
· EPS (Emergency Power Supply) & UPS (Uninterruptible Power Supply) Systems
· Switchgear & Control Systems
· Emergency Lighting & Security Systems
· General Standby Power & Renewable Energy Storage
Specifications
| Parameter | Specification |
| Cells Per Unit | 1 |
| Voltage Per Unit | 2V |
| Design Life (Float) | 20 Years @ 25°C |
| Technology | Valve Regulated Lead Acid (VRLA), AGM |
| Terminal | F10 (M8) |
| Container Material | A.B.S. UL94-HB (UL94-V0 optional) |
| Standby Use Voltage | 2.27V ~ 2.30V @ 25°C |
| Temperature Compensation (Float) | -3mV/°C/Cell |
| Cycle Use Voltage | 2.43V ~ 2.47V @ 25°C |
| Temperature Compensation (Cycle) | -4mV/°C/Cell |
| Operating Temperature Range | Discharge: -20°C~60°C / Charge: -0°C~50°C / Storage: -20°C~60°C |
| Normal Operating Temperature | 25°C ± 5°C |
| Self Discharge | < 3% per month at 25°C |
| Certification | ISO 9001, ISO 14001, OHSAS 18001 |
Competitive Advantage
· Ultra-Long Service Life: 20-year design life significantly reduces battery replacement costs and maintenance frequency.
· Superior High-Rate Discharge: Excellent performance for short-duration, high-current backup applications like UPS.
· Low Self-Discharge: Can be stored for up to 6 months at 25°C before requiring a recharge, offering great flexibility.
· Consistent Quality: Manufactured under strict ISO 9001, ISO 14001, and OHSAS 18001 certified management systems.
· Wide Capacity Range: Available in multiple capacities (200Ah to 3000Ah) to meet various system design needs.
