POWERPITTAR SLA Replacement Lithium Battery LiFePO4 | Drop-in Replacement for Lead Acid | 12.8V & 25.6V | 50Ah to 200Ah | Deep Cycle | High Safety | Long Life | For Solar, EV, UPS, Off-Grid Systems
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
Experience the future of energy storage with the POWERPITTAR® SLA replacement lithium battery series. Our LiFePO4 (Lithium Iron Phosphate) batteries are engineered to be the perfect upgrade over traditional sealed lead-acid batteries. They are a 100% drop-in replacement, meaning they fit into the same space and use the same chargers with minimal configuration.
By switching to our Lithium batteries, you gain exceptional advantages: a dramatic weight reduction by approximately 60%, a doubled power output, and an unparalleled cycle life exceeding 4000 cycles at 100% Depth of Discharge (DOD). The advanced internal Battery Management System (BMS) ensures safety against overcharging, over-discharging, over-current, and short circuits, while the stable LiFePO4 chemistry eliminates any risk of explosion or combustion. Our modular design allows flexible series and parallel configurations (up to 4S/10P depending on model) to meet any voltage or capacity requirement.
Quick Detail
· Direct Drop-in Replacement: Designed as a true SLA replacement lithium battery, it fits perfectly into your existing system without needing to change chargers or settings.
· Superior Performance: Offers up to 20 times longer cycle life and five times longer float/calendar life than traditional SLA batteries, significantly reducing the total cost of ownership.
· Extremely Lightweight: Weighs only about 40% of a comparable SLA battery (e.g., PT12.8-100 weighs only 9.8kg vs ~24kg for a 100Ah SLA battery).
· Wide Application: Perfect for solar energy storage, UPS, electric vehicles, medical equipment, and lighting systems.
Applications
· Solar / Wind Energy Storage Systems (Off-Grid & On-Grid)
· UPS (Uninterruptible Power Supply) and Backup Power
· Electric Vehicles (EV) and Electric Mobility
· Telecommunication Base Stations
· Medical Equipment
· Lighting Systems (Solar Street Lights, etc.)
· Marine and RV (Recreational Vehicle) Applications
Specifications
| Model | Nominal Voltage | Nominal Capacity | Energy (Wh) | Continuous Charge Current | Max. Charge Current | Continuous Discharge Current | Max. Pulse Current | Weight (kg) | Dimensions (LWH mm) | Terminal |
| PT12.8-50 | 12.8V | 50 Ah | 640 Wh | 25 A | 50 A | 25 A | 75 A (<3s) | 6.1 | 229138208 | M8 |
| PT12.8-100 | 12.8V | 100 Ah | 1280 Wh | 50 A | 100 A | 50 A | 150 A (<3s) | 9.8 | 260168209 | M8 |
| PT12.8-150 | 12.8V | 150 Ah | 1920 Wh | 75 A | 150 A | 75 A | 200 A (<3s) | 13.4 | 328172220 | M8 |

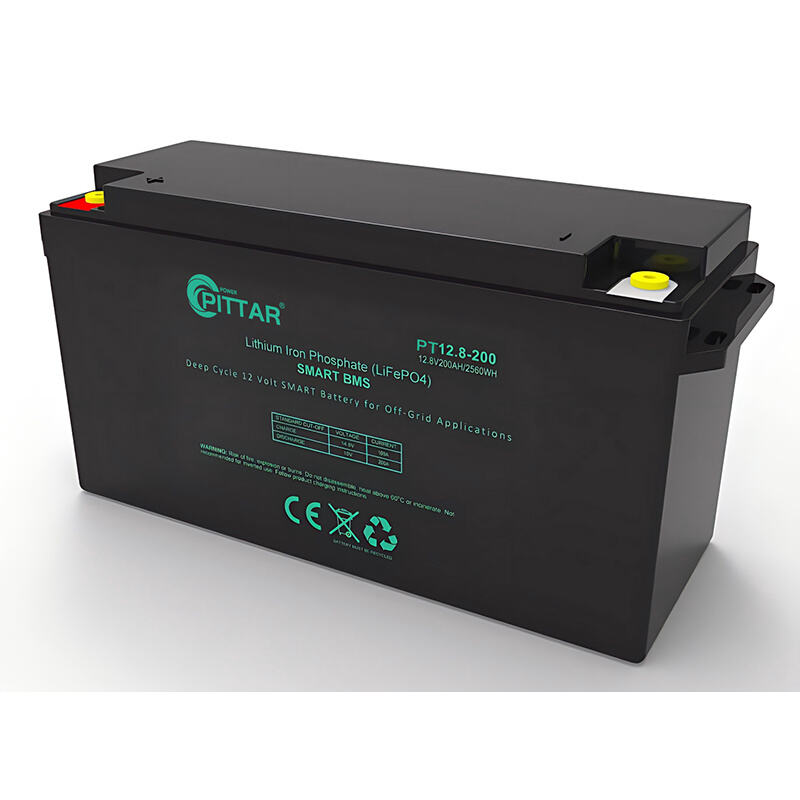

| PT12.8-200 | 12.8V | 200 Ah | 2560 Wh | 100 A | 200 A | 100 A | 200 A | 22 | 394170245 | M8 |
| PT25.6-100 | 25.6V | 100 Ah | 2560 Wh | 50 A | 100 A | 50 A | 150 A (<12s) | 20 | 483170240 | 100A Connector |

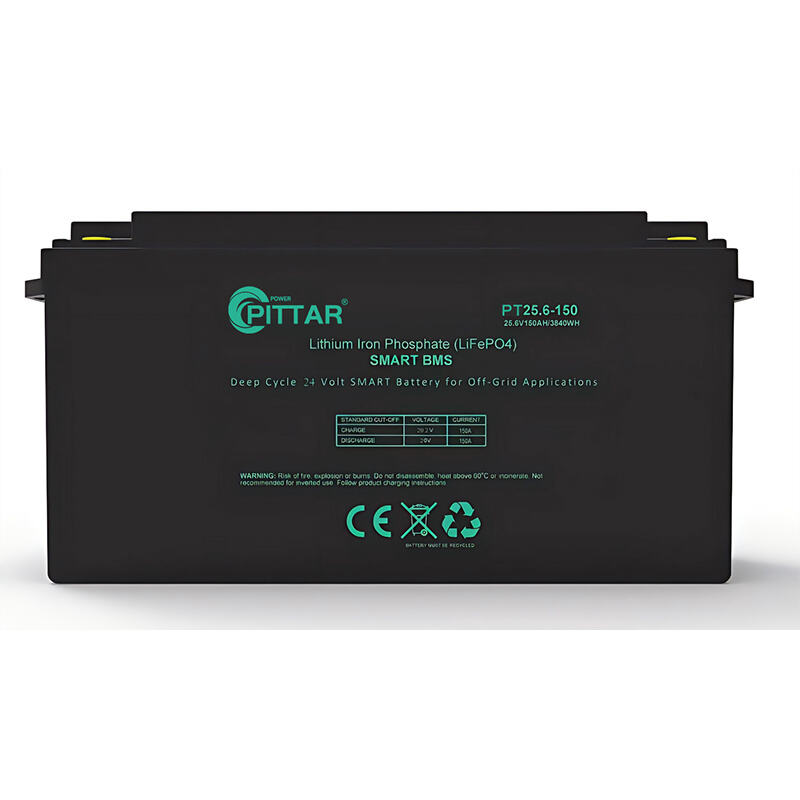

| PT25.6-150 | 25.6V | 150 Ah | 3840 Wh | 75 A | 150 A | 75 A | 225 A (<12s) | 26 | 385190245 | 150A Connector |
| PT25.6-200 | 25.6V | 200 Ah | 5120 Wh | 100 A | 200 A | 100 A | 200 A | 33 | 523269218 | 200A Connector |
Competitive Advantage
· Cost-Effective: With over 4000 cycles, our battery can last over 10 years, offering a much lower cost per cycle compared to traditional SLA solutions.
· Safety First: The safest lithium chemistry on the market, combined with our robust SMART BMS.
· User-Friendly: Truly a "drop-in" replacement. No complicated wiring changes or software updates needed for most applications.
· Global Certifications: Our products are CE certified, meeting international standards for quality and safety.
· Fully Customizable: We offer a range of capacities and voltages to give you the exact power you need.
