Wall-Mounted 51.2V 600Ah 30kWh LiFePO4 Lithium Battery LW-30K High Cycle Life Solar Storage & UPS Backup
Wall-Mounted 51.2V 600Ah 30kWh LiFePO4 Lithium Battery LW-30K High Cycle Life Solar Storage & UPS Backup
- Overview
- Description:
- Key features include:
- Applications:
- Specifications (LW-30K):
- Competitive Advantage:
- Tag:
- Recommended Products
Overview
- Model: LW-30K
- Type: Wall-Mounted Lithium Iron Phosphate (LiFePO4) Battery
- Nominal Voltage: 51.2V
- Nominal Capacity: 600Ah (C5, 25℃)
- Energy: 30kWh (30,720Wh)
- Cycle Life: 8000 cycles (at 0.2C, 100% DOD)
- Application: Solar/Wind Energy Storage, UPS, Backup Power, Electric Vehicles, Telecom
- Design: Modular, wall-mounted, metal case with wheels
Quick Detail:
Description:

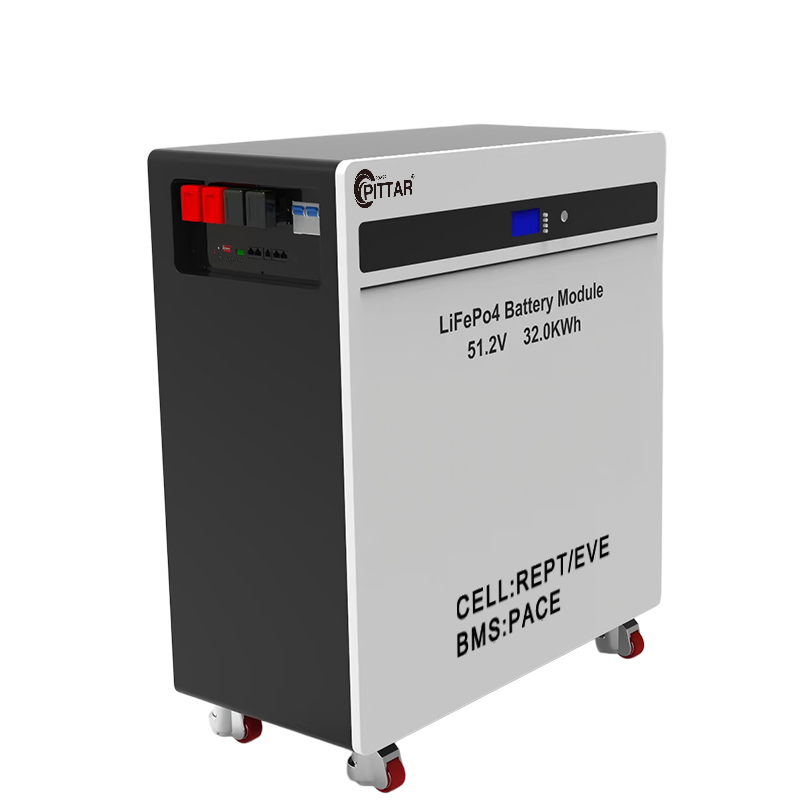

The LW-30K is a high-capacity, wall-mounted Lithium Iron Phosphate (LiFePO4) battery designed for demanding energy storage applications. With a massive 51.2V 600Ah configuration delivering 30kWh of energy, this battery is an ideal and reliable power solution for large-scale solar systems, industrial UPS, and heavy-duty backup power.
Utilizing advanced LiFePO4 chemistry, the LW-30K offers up to 20 times longer cycle life and five times longer float/calendar life compared to traditional lead-acid batteries. Its "drop-in" replacement design and wall-mounted form factor save valuable floor space while providing superior performance.
Key features include:
- Ultra-Long Cycle Life: Offers >8000 cycles at 100% DOD, significantly reducing total cost of ownership and replacement frequency.
- Lighter Weight & Higher Power: Weighs about 40% of a comparable lead-acid battery but delivers twice the power, even at high discharge rates.
- Superior Safety: The stable LiFePO4 chemistry eliminates the risk of explosion or combustion from overcharging, short circuits, or physical impact.
- Wide Temperature Range: Operates reliably in harsh environments from -20℃ to 60℃.
- Modular & Scalable: Supports parallel connection of up to 16 units for even larger energy needs.
- High Efficiency: Charge efficiency of 100% and discharge efficiency of 96~99%, minimizing energy loss.

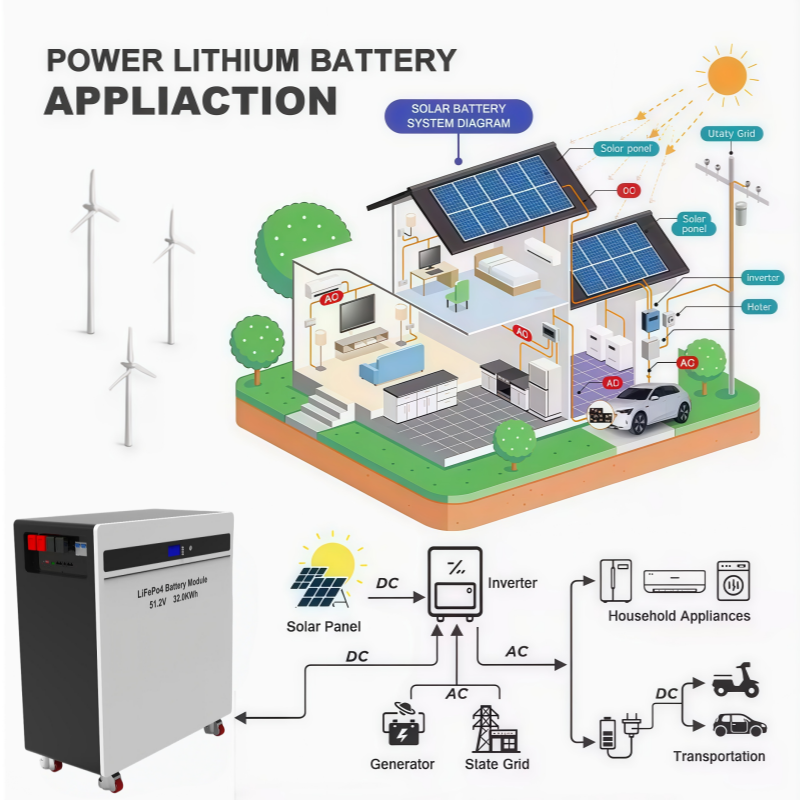

Applications:
- Solar / Wind Energy Storage Systems
- UPS (Uninterruptible Power Supply) and Large Backup Power
- Electric Vehicles and Heavy Electric Mobility
- Telecommunication Base Stations
- Medical Equipment
- Industrial Lighting Systems

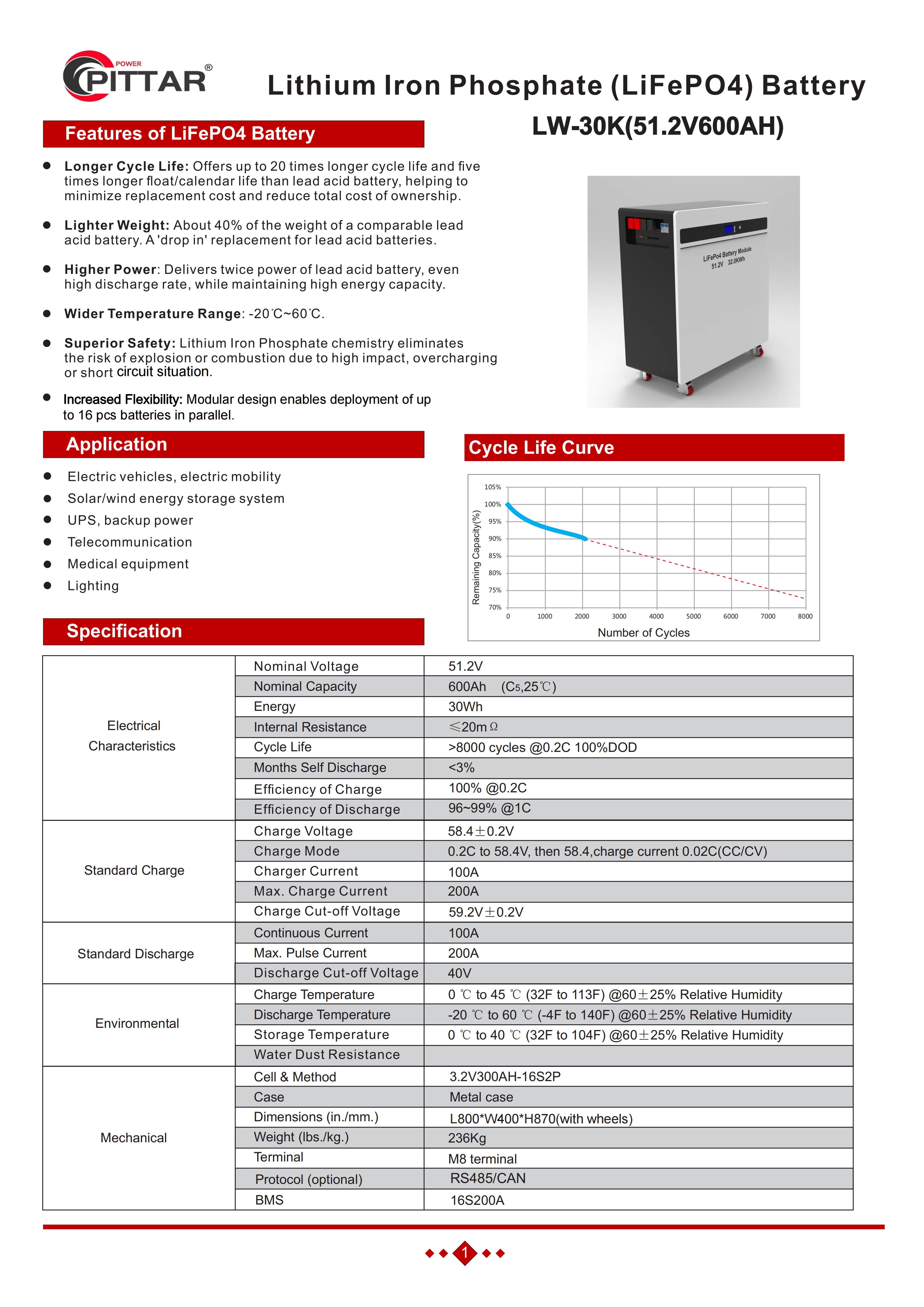

Specifications (LW-30K):
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 600Ah (C5, 25℃) |
| Energy | 30kWh |
| Internal Resistance | ≤20mΩ |
| Cycle Life | >8000 cycles @0.2C 100% DOD |
| Self-Discharge | <3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 96~99% @1C |
| Charge Voltage | 58.4±0.2V |
| Max. Charge Current | 200A |
| Charge Cut-off Voltage | 59.2V±0.2V |
| Continuous Discharge Current | 100A |
| Max. Pulse Current | 200A |
| Discharge Cut-off Voltage | 40V |
| Charge Temperature | 0℃ to 45℃ |
| Discharge Temperature | -20℃ to 60℃ |
| Enclosure | Metal Case with Wheels |
| Dimensions (in./mm.) | L800W400H870 |
| Weight | 236kg |
| Terminal | M8 Terminal |
| Communication (Optional) | RS485 / CAN |
| BMS | 16S200A |
Competitive Advantage:
- Unmatched Capacity: 30kWh of energy storage in a single unit, perfect for large-scale applications.
- True Drop-in Replacement: Directly replaces bulky lead-acid battery banks without major system modifications.
- Space-Saving Wall Mount: Optimizes floor space while providing high energy density.
- Extreme Longevity: >8000 cycle life ensures decades of reliable service.
- Robust BMS Protection: Integrated Battery Management System ensures safe operation and extends battery life.
Tag:
Wall Mounted Lithium Battery 51.2V 600Ah, 30kWh LiFePO4 Battery, Large Solar Battery, Industrial UPS Battery, Home Energy Storage, Deep Cycle Battery, Backup Power Battery, Green Energy Storage, LW-30K.
