Pittar 210H52MF 12V200AH Maintenance-Free Lead-Acid Automotive Battery

Pittar 210H52MF 12V200AH Maintenance-Free Lead-Acid Automotive Battery

1100CCA (EN) High Cranking Power for Heavy-Duty Trucks, Buses & Large Commercial Vehicles

Overview
Specifications
Description
Applications
Competitive Advantage
Tags
Recommended Products

Overview

Quick Detail

Product Name: 210H52MF (12V200AH) Maintenance-Free Lead-Acid Battery
Brand: PITTAR®
Model: 210H52MF
JIS Equivalent: 210H52MF, N200
Type: Maintenance-Free, Lead-Calcium Alloy Grid
Application: Starting, ignition, and lighting systems for heavy-duty trucks, buses, construction equipment, and large commercial vehicles.
Core Advantage: Excellent high-current discharge, no water addition required, long storage life, wide temperature range (-40°C to +60°C).

Specifications

Parameter	Value
Nominal Voltage	12V
Nominal Capacity (20HR)	200Ah
CCA (-18°C)	1000A (SAE)
CCA (Higher Rating)	1100A (EN)
Reserve Capacity	410 min
Weight (±3%)	47.5 kg
Max Dimensions (L x W x H)	512 x 251 x 215 mm
Total Height (T.H.)	242 mm
Constant Charging Voltage	13.5V ~ 13.8V
Constant Charging Current	22.0A
Max Charging Current	66.0A
Cover Material	PP (Polypropylene)
Executive Standard	GB/T 5008-2023
Temperature Range (Discharge/Charge/Store)	-40°C ~ +60°C
Optimum Temperature	+10°C ~ +30°C

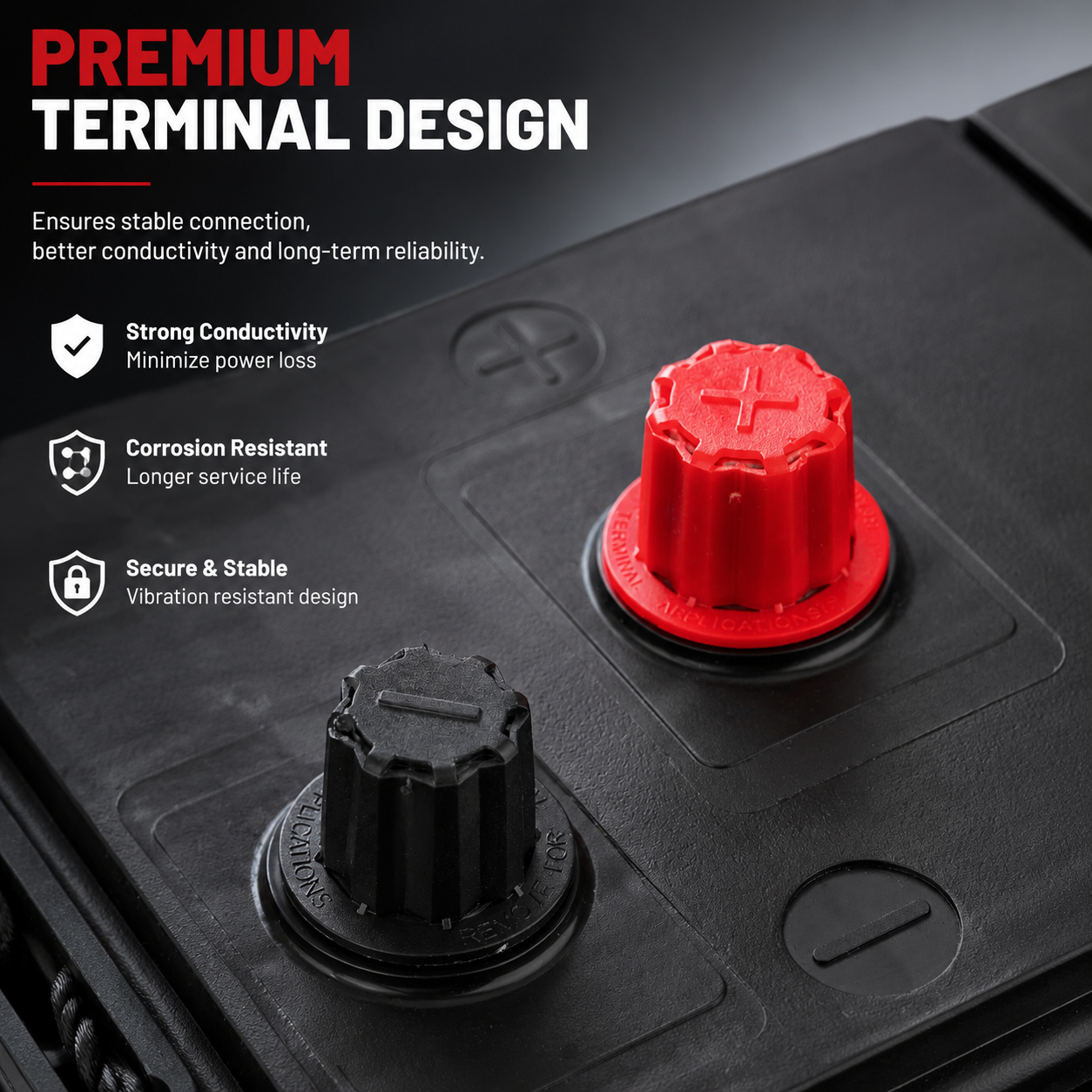

Terminal Diameter (Positive)	19.5 mm
Terminal Diameter (Negative)	17.9 mm

Description

The Pittar 210H52MF (12V200AH) is a high-capacity, maintenance-free automotive battery engineered to deliver exceptional starting power for the most demanding heavy-duty applications. Built with advanced lead-calcium alloy grid technology, this battery provides outstanding high-current discharge characteristics, ensuring reliable cranking for large-displacement engines in trucks, buses, and commercial equipment.

Key Features:

Maintenance-Free: Completely sealed design eliminates the need for water addition, offering a true “fit and forget” experience.
Extreme Cranking Power: With a Cold Cranking Amps (CCA) rating of 1000A (-18°C) and up to 1100A (EN), it guarantees reliable engine starts even in the harshest winter conditions.
Exceptional Reserve Capacity: A massive 410-minute reserve capacity provides ample backup power for auxiliary electrical systems and accessories.
Wide Temperature Tolerance: Engineered to operate reliably across a broad temperature range from -40°C to +60°C, making it suitable for extreme climates worldwide.
Long Shelf Life & Low Self-Discharge: The lead-calcium alloy grid minimizes self-discharge, allowing for extended storage periods without performance degradation.
Durable Construction: The robust PP (polypropylene) container and heavy-duty internal construction are built to withstand intense vibration and shock common in commercial vehicles.

Applications

Heavy-Duty Trucks: Long-haul trucks, tractor-trailers, and dump trucks.
Commercial Buses: City buses, coaches, and school buses.
Construction & Mining Equipment: Bulldozers, excavators, loaders, and generators.
Agricultural Vehicles: Large tractors and harvesters.
Marine & Industrial: Starting batteries for large marine engines and industrial equipment.
Replacement: Direct replacement for standard JIS Group H52 (210H52MF, N200) and other large-format batteries.

Competitive Advantage

Maintenance-Free Technology: Reduces maintenance costs and provides superior convenience for fleet operators and end-users.
High CCA & Reserve Capacity: Delivers industry-leading cold cranking power and backup energy, outperforming many standard market batteries.
Lead-Calcium Alloy Grid: Offers superior corrosion resistance and longer service life compared to traditional lead-antimony batteries.
Wide Temperature Range: Guarantees reliable performance in both extreme cold and heat, ideal for global markets.
Manufacturer Direct: Factory-direct pricing with strict quality control, suitable for OEM/ODM projects and large-scale fleet procurement.
