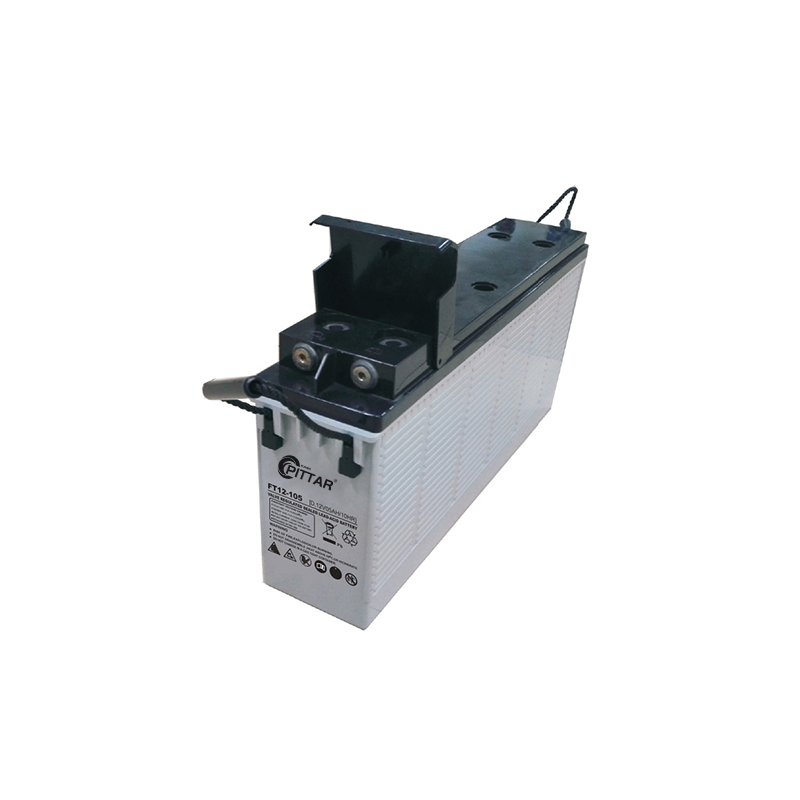

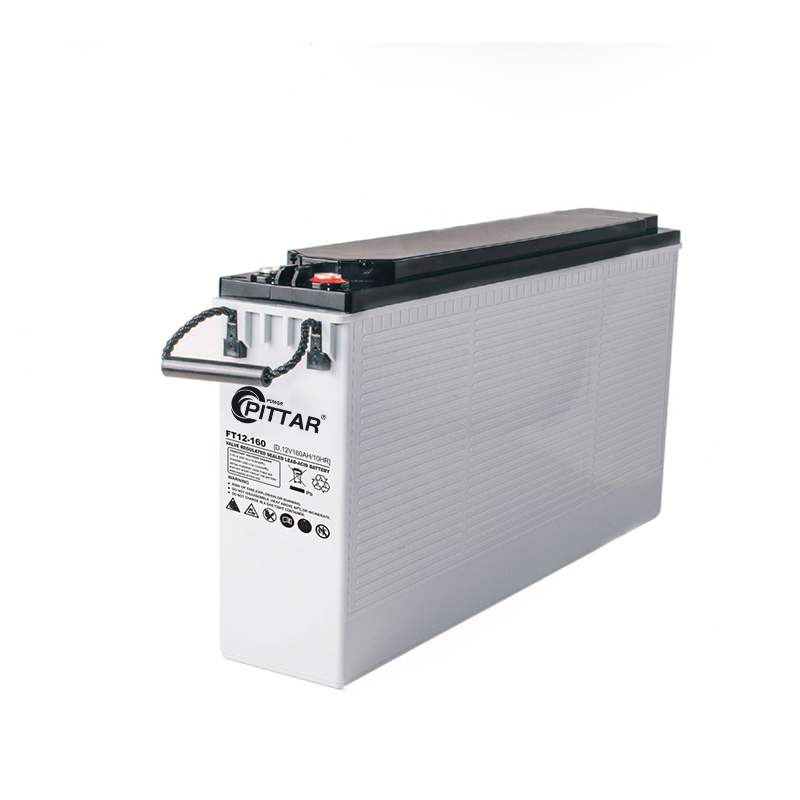

PITTAR FT-D Series 12V Front Terminal Deep Cycle VRLA Battery | 55Ah-185Ah | 15-Year Design Life for Telecom, Solar & UPS
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
The PITTAR FT-D Series is a premium line of Front Terminal Deep Cycle (FTD) batteries engineered for superior integrity, reliability, and performance in the most demanding applications. Specifically designed for frequent cyclic charge and discharge, these batteries utilize strong grids, thick plates, and a specialized active material formulation to withstand repeated deep discharges effectively.
A standout feature of the FT-D series is its 30% longer cyclic life compared to conventional standby series batteries, making it a cost-effective and durable power solution. With a 15-year design life under floating charge conditions, these batteries ensure long-term performance for critical infrastructure such as telecommunications base stations, solar energy storage, and UPS backup systems.
The front terminal design is optimized for easy installation and maintenance in standard 19-inch and 23-inch equipment cabinets. Additionally, the series features an extremely low self-discharge rate (less than 3% per month at 25°C), allowing for storage of up to 6 months before a recharge is required.
Quick Detail
| Type: | Valve Regulated Lead Acid (VRLA), Front Terminal Deep Cycle |
| Voltage: | 12V |
| Capacity Range: | 55Ah to 185Ah (20hr-rate) |
| Key Feature: | Offers 30% more cyclic life than standard standby batteries |
| Suitable for: | Telecom, Solar/Wind Energy Storage, UPS, Medical Equipment, RV, Broadband & Cable TV |
Applications
· Telecommunications: Base stations, BTS, and network equipment backup.
· Renewable Energy: Solar and wind power storage systems.
· Uninterruptible Power Supplies (UPS): Critical power backup for servers and industrial equipment.
· Medical Equipment: Reliable power for life-support and diagnostic devices.
· Mobility & Recreation: Golf carts, RVs, and electric mobility vehicles.
· Infrastructure: Broadband, cable TV, and emergency lighting systems.
Specifications
| Parameter | Value |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Design Life | 15 Years (Floating Charge) |
| Self-Discharge | < 3% per month |
| Storage Time (at 25°C) | Up to 6 months (recharge recommended) |
| Container Material | A.B.S. (UL94-HB standard, UL94-V0 optional) |
| Float Charging Voltage | 13.6 V ~ 13.8 V (Compensation: -3mV/°C/Cell) |
| Cycle Use Voltage | 14.2 V ~ 14.4 V (Compensation: -4mV/°C/Cell) |
| Max. Charging Current | 0.3C (e.g., 30A for 100Ah model, 45A for 150Ah model) |
| Operating Temp. (Discharge) | -20°C ~ 60°C |
| Operating Temp. (Charge) | 0°C ~ 50°C |
| Operating Temp. (Storage) | -20°C ~ 60°C |
Competitive Advantage
· Superior Cyclic Life: Offers 30% more cycles than standard standby batteries, significantly reducing total cost of ownership (TCO).
· High Reliability: Strong grids and thick plates ensure excellent deep discharge recovery and long-term durability.
· Low Self-Discharge: Allows for extended storage without frequent maintenance charging.
· Universal Compatibility: Front terminal design fits standard 19" and 23" racks, simplifying system integration.
· Robust Quality: Manufactured under strict ISO 9001, ISO 14001, and OHSAS 18001 management systems, with CE certification.
