PITTAR OPzV Series 2V & 12V Gel Tubular Plate Valve Regulated Lead Acid (VRLA) Battery – High Reliability, 20-Year Float Design Life, for Solar, Telecom & UPS Applications
- Overview
- Features
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
| Place of Origin | China |
| Brand Name | PITTAR |

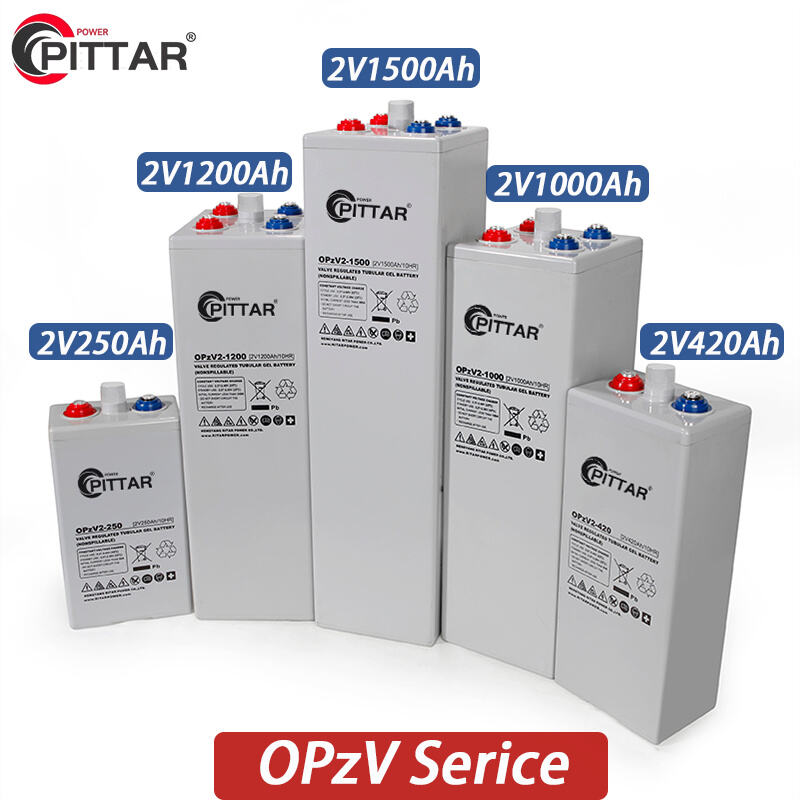

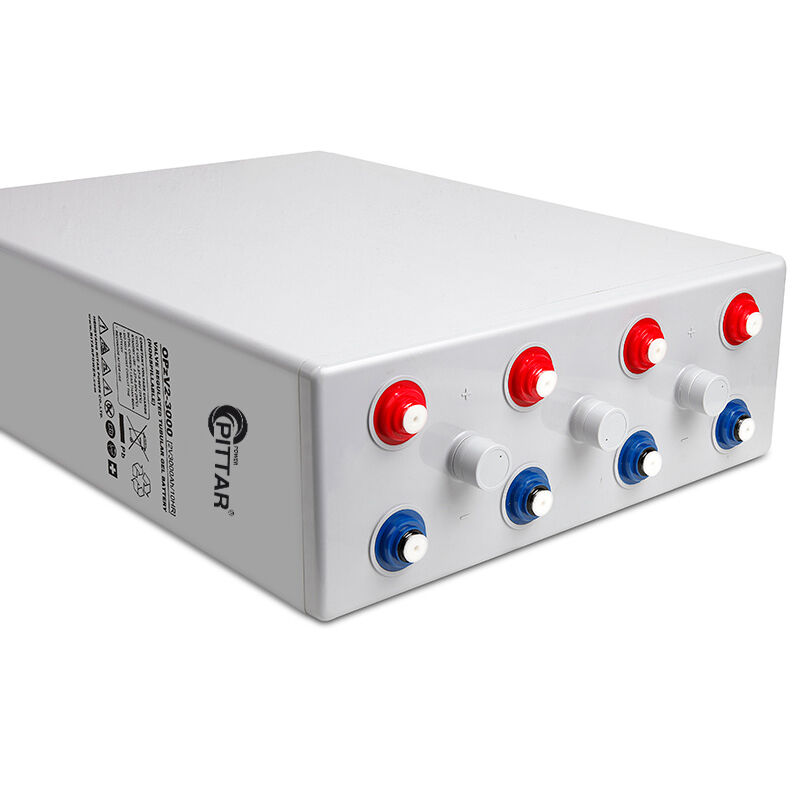

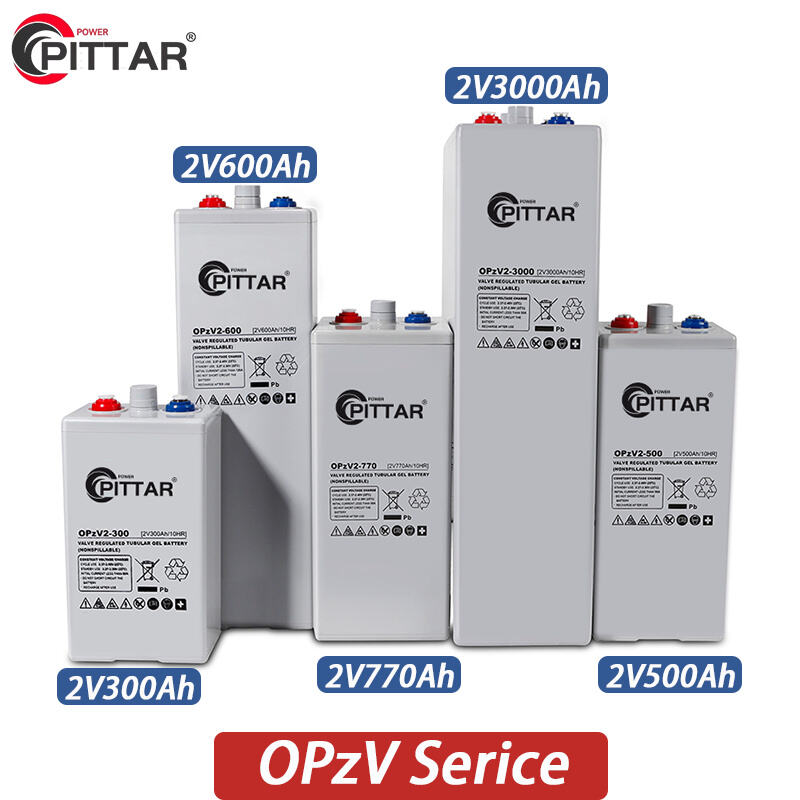

| Model Number | OPzV2-200 to OPzV2-3000 / OPzV12-60 to OPzV12-200 (See Specifications) |
| Certification | ISO 9001, ISO 14001, OHSAS 18001, UL94-HB/V0 (Optional) |
The PITTAR OPzV series is a premium range of Valve Regulated Lead Acid (VRLA) batteries designed for the most demanding, high-reliability cycling and standby power applications. These batteries utilize advanced immobilized GEL electrolyte combined with robust Tubular Plate technology, setting a benchmark for long service life and consistent performance in extreme operating conditions. Manufactured strictly according to DIN standards, the OPzV series provides a superior solution for any critical power system.
Usage & Maintenance Guide
· Storage: Batteries should be stored in a cool, dry environment. For every 6 months of storage at 25°C, a recharge is required.
· First Use: Always fully charge the battery before first use to ensure it delivers its full rated capacity.
· Charging Voltage: Float Use: 13.5V~13.8V (for 12V models) / 2.25V~2.30V (for 2V models) @ 25°C； Cycle Use: 14.2V~14.4V (for 12V models) / 2.37V~2.40V (for 2V models) @ 25°C
· Temperature Compensation: Apply a compensation of -3mV/°C/Cell for float charging and -4mV/°C/Cell for cycle use.
Features
· Advanced GEL Technology: Uses a thixotropic gel electrolyte that prevents stratification and ensures uniform capacity across the battery, offering high reliability and performance.
· Robust Tubular Plate Design: The positive plate utilizes die-casting grids and a patented active material formula, providing excellent resistance to corrosion and ensuring a long operational lifespan.
· Exceptional Lifespan: Designed for a 20-year floating charge design life at 25°C (77°F), surpassing standard DIN values. It also offers superior cycle life, with thousands of cycles available at various depths of discharge (DOD).
· Wide Operating Temperature: Capable of operating in a broad temperature range: Discharge (-40°C~60°C), Charge (-20°C~50°C), making it ideal for diverse climates.
· Low Self-Discharge: The high-quality gel and plate design ensure a very low monthly self-discharge rate of less than 2% at 20°C, allowing for longer storage periods.
· Deep Discharge Recovery: Excellent recovery capability even after a deep discharge, ensuring system reliability.
· Maintenance-Free: No water topping-up is required throughout the service life, reducing maintenance costs.
· Safety Certified: Manufactured in ISO 9001, ISO 14001, and OHSAS 18001 certified facilities. Container material is standard ABS (UL94-HB), with a UL94-V0 option available.
Applications
· Renewable Energy Systems: Solar and wind power storage.
· Telecommunications: Base stations, data centers, and backup power for BTS.
· Uninterruptible Power Supplies (UPS): Critical backup for IT, medical, and industrial equipment.
· Utility & Power Plants: Switchgear, control systems, and emergency backup.
· Cyclic Use Applications: Electric vehicles (e.g., forklifts, sweepers) and other frequent deep-cycle scenarios.
Specifications
| Parameter | Specification |
| Technology | Valve Regulated Lead Acid (VRLA), GEL, Tubular Plate |
| Design Standard | DIN Standard |
| Design Life (Float) | 20 Years @ 25°C |
| Voltage Options | 2V (Single Cell) & 12V (6 Cells Per Unit) |
| Capacity Range | 80Ah~120Ah (12V Models) / 200Ah~3000Ah (2V Models, @10hr-rate) |
| Operating Temp. Range | Discharge: -40°C ~ 60°CCharge: -20°C ~ 50°CStorage: -40°C ~ 60°C |
| Self Discharge | < 2% per month at 20°C. Can be stored for up to 6 months at 25°C before recharging. |
| Container Material | A.B.S. (UL94-HB standard, UL94-V0 optional) |
| Certification | ISO 9001, ISO 14001, OHSAS 18001 |
Competitive Advantage
· Longest Lifespan: The 20-year float design life and superior cycle life (especially at 30-50% DOD) offer the lowest total cost of ownership (TCO) over the product's lifetime.
· Extreme Performance: Specifically designed for cyclic use under the most extreme operating conditions, outperforming standard AGM and other gel batteries.
· Unmatched Reliability: The combination of tubular plate and gel technology provides an exceptionally robust and fail-safe power solution for mission-critical applications.

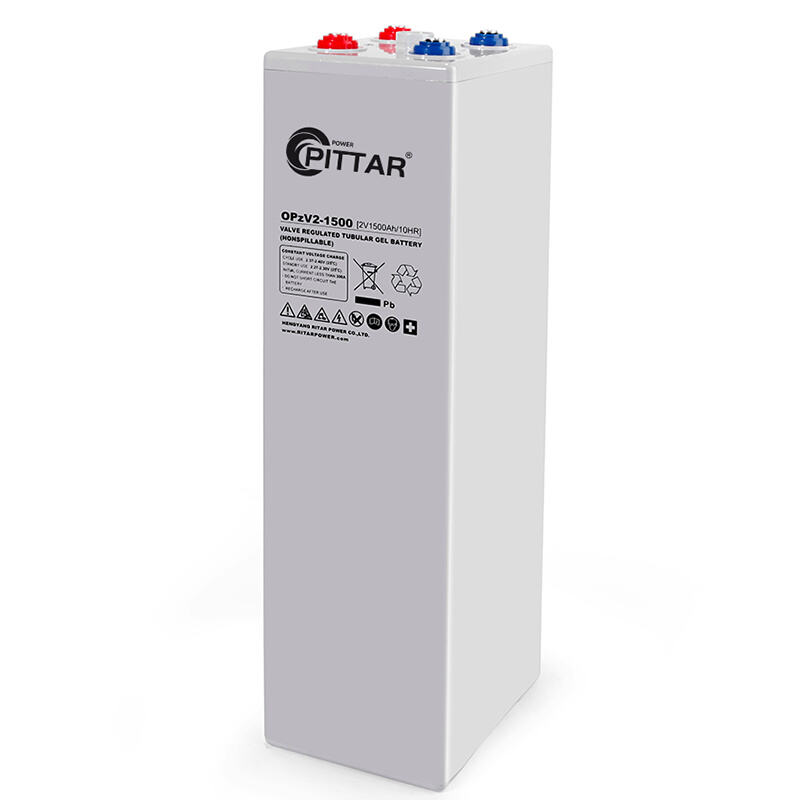

· High Power Density: Capable of high discharge currents (up to 4500A for the 1500Ah model) for short durations, ensuring reliable startup of heavy loads.
