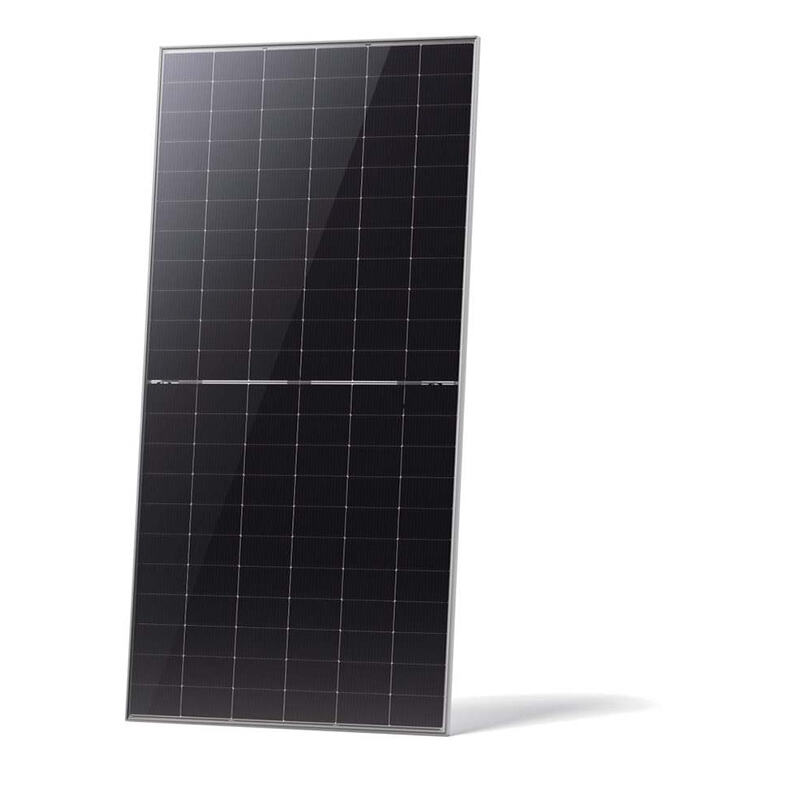

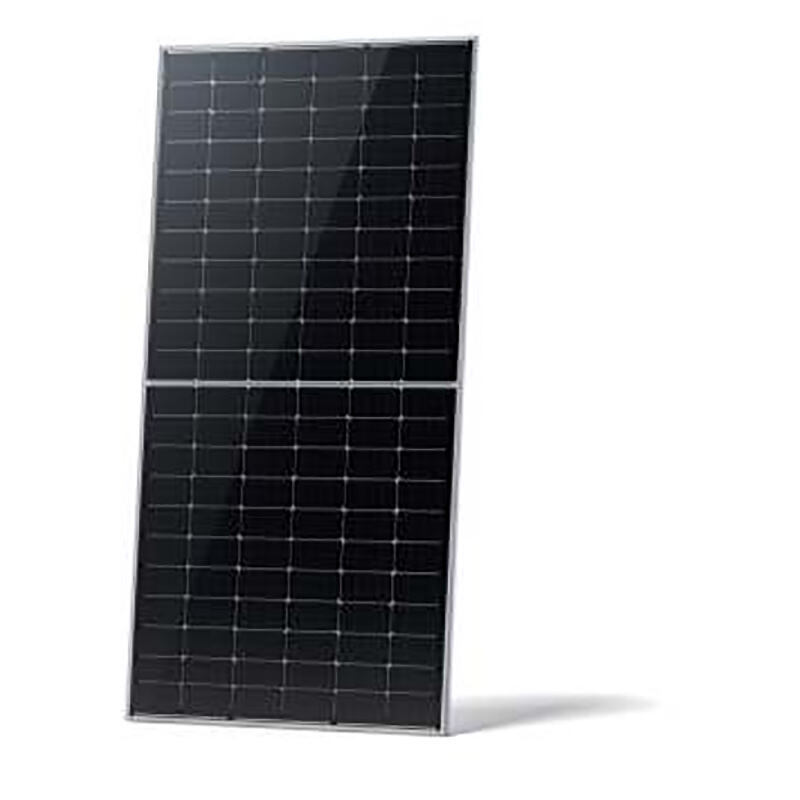

PITTARSolar TIGER Neo N-Type Bifacial Solar Module | 570W-720W Dual Glass TOPCon Panel for Commercial, Industrial & Utility Projects | SMBB & HOT Technology | 30-Year Warranty
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
Maximize Your Energy Harvest with PITTARSolar TIGER Neo Series
Are you looking for a high-performance, reliable solar module for your commercial or utility-scale project? The PITTARSolar TIGER Neo Series is the industry-leading solution designed to deliver maximum power output, exceptional durability, and the lowest Levelized Cost of Electricity (LCOE).
As a world-renowned brand, PITTARSolar’s TIGER Neo modules leverage advanced N-type TOPCon (Tunnel Oxide Passivating Contacts) technology. This provides significant advantages over conventional P-type modules, including lower LID/LeTID degradation and better performance in low-light conditions.
Why Choose PITTARSolar TIGER Neo for Your Project?
· Next-Generation N-Type Technology: TOPCon technology ensures higher efficiency and superior energy yield over the lifetime of the system.
· Dual-Sided Power Generation: The bifacial design captures sunlight from both the front and back, significantly increasing energy generation and reducing LCOE.
· Industry-Leading Efficiency: Module efficiency reaches up to 24.80% (in the 66QL6-BDV model), converting more sunlight into usable electricity.
· Exceptional Reliability: Certified to withstand high mechanical loads (up to 5400 Pa front / 2400 Pa rear) and features Anti-PID protection for long-term stability.
· SMBB & HOT Technology: Multi-Busbar design improves light trapping and current collection. HOT 2.0/3.0 technology enhances reliability and efficiency.
· Long-Term Warranty: Backed by a 12-year product warranty and a 30-year linear power warranty (first-year degradation as low as 1%, subsequent annual degradation of only 0.4%).
Quick Detail
· Also known as: N-type TOPCon solar panel, bifacial glass-glass module, high-power PV panel, commercial solar panel, utility-scale solar module.
· Main Use: Designed for large-scale commercial rooftop projects, ground-mounted solar farms, industrial power plants, and high-efficiency distributed generation systems.
· Core Specs: Power range from 570W to 720W, featuring N-type TOPCon cell technology, bifacial dual-glass design, SMBB (Multi-Busbar) and HOT 2.0 / 3.0 technology, and top-class efficiency up to 24.80%.
Applications
· Large-Scale Solar Farms: Ideal for utility-scale ground-mounted power plants requiring high power density.
· Commercial & Industrial Rooftops: Perfect for factories, warehouses, and office buildings looking to reduce energy costs.
· Agricultural Solar (Agrivoltaics): The transparent backsheet and bifacial nature are well-suited for applications like greenhouses and livestock shelters.
· Floating Solar Plants: The dual-glass construction provides excellent protection against moisture.
· High-Voltage Systems: Suitable for 1000V / 1500V DC systems, reducing BOS costs.
Specifications
| Model | Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Module Efficiency | Cell Type / Technology |
| JKM570-590N-72HL4-BDV | 570-590 | 52.10-52.90 | 13.83-14.07 | 43.58-44.17 | 13.08-13.36 | 22.07-22.84% | N-type TOPCon / HOT 2.0 |
| JKM600-625N-66HL4M-BDV | 600-625 | 48.28-49.28 | 15.84-16.14 | 40.16-40.88 | 14.94-15.29 | 22.21-23.14% | N-type TOPCon / HOT 2.0 |
| JKM625-650N-66HL4M-BDV-Z2 | 625-650 | 49.28-50.28 | 16.14-16.44 | 40.88-41.58 | 15.29-15.64 | 23.14-24.06% | N-type TOPCon / HOT 3.0 |
| JKM625-650N-78HL4-BDV | 625-650 | 56.95-57.60 | 13.80-14.10 | 47.54-48.33 | 13.15-13.45 | 22.36-23.25% | N-type TOPCon / HOT 3.0 |
| JKM650-670N-66QL6-BDV | 650-670 | 50.26-50.98 | 15.98-16.22 | 42.57-43.09 | 15.27-15.55 | 24.06-24.80% | N-type TOPCon / Neo III |
| JKM700-720N-66HL5-BDV | 700-720 | 48.40-49.04 | 18.40-18.67 | 40.42-40.89 | 17.32-17.61 | 22.54-23.18% | N-type TOPCon / HOT 2.0 |
Temperature Coefficients:
Pmax: -0.29%/°C (or -0.26%/°C for 66QL6)
Voc: -0.25%/°C (or -0.24%/°C for 66QL6)
Isc: +0.045%/°C (or +0.046%/°C for 66QL6)
Power Tolerance: 0 ~ +3%
Competitive Advantage
1. Proven Global Brand: PITTARSolar is one of the world’s largest and most bankable solar module manufacturers, ensuring product quality and long-term support.
2. TOPCon Technology Leadership: Higher efficiency and lower degradation compared to standard PERC modules, leading to more energy over 30 years.
3. Bifacial Gain: Up to 85% ± 5% bifaciality factor (66QL6 model), capturing reflected light to boost total energy yield.
4. Comprehensive Certifications: Meets the most stringent international standards, including PID resistance, salt mist, and ammonia resistance.
5. Low LCOE: The combination of high efficiency, dual-sided generation, and low degradation results in the lowest cost of electricity for your investment.
6. Industry-Leading Warranty: 12-year product warranty and 30-year linear power output warranty give you peace of mind.
