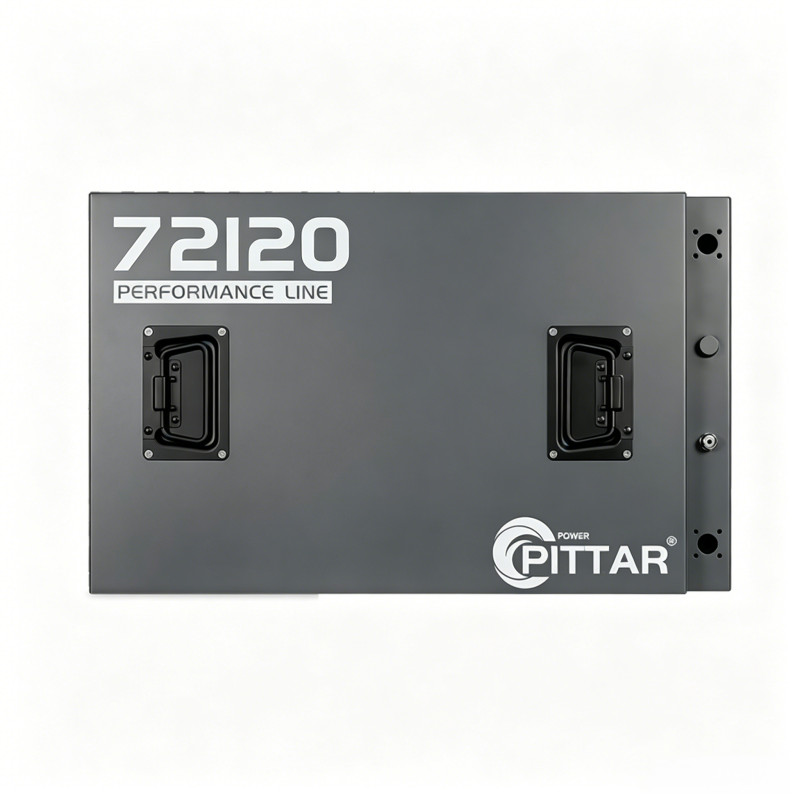

76.8V 120Ah LiFePO4 Battery Pack for Electric Motorcycle EV – PITTAR-72120
The PITTAR-72120 is a 76.8V 120Ah LiFePO4 battery pack for electric motorcycles and high-power EVs. Built with Grade A cells and Jiabaida smart BMS, it delivers safe, reliable, long-lasting power.
- Overview
- Specifications
- Applications
- Competitive Advantage
- About us
- Recommended Products
Overview
Quick Detail
| Item | Description |
| Other Names | 72V 120Ah Lithium Battery, Electric Motorcycle Battery, E-Bike Battery, EV Power Battery |
| Main Application | Electric motorcycles, high-power e-bikes, three-wheelers |
| Core Specs | 76.8V 120Ah / 9216Wh / LiFePO4 / IP65 / ≤5000W Motor / Bluetooth BMS |

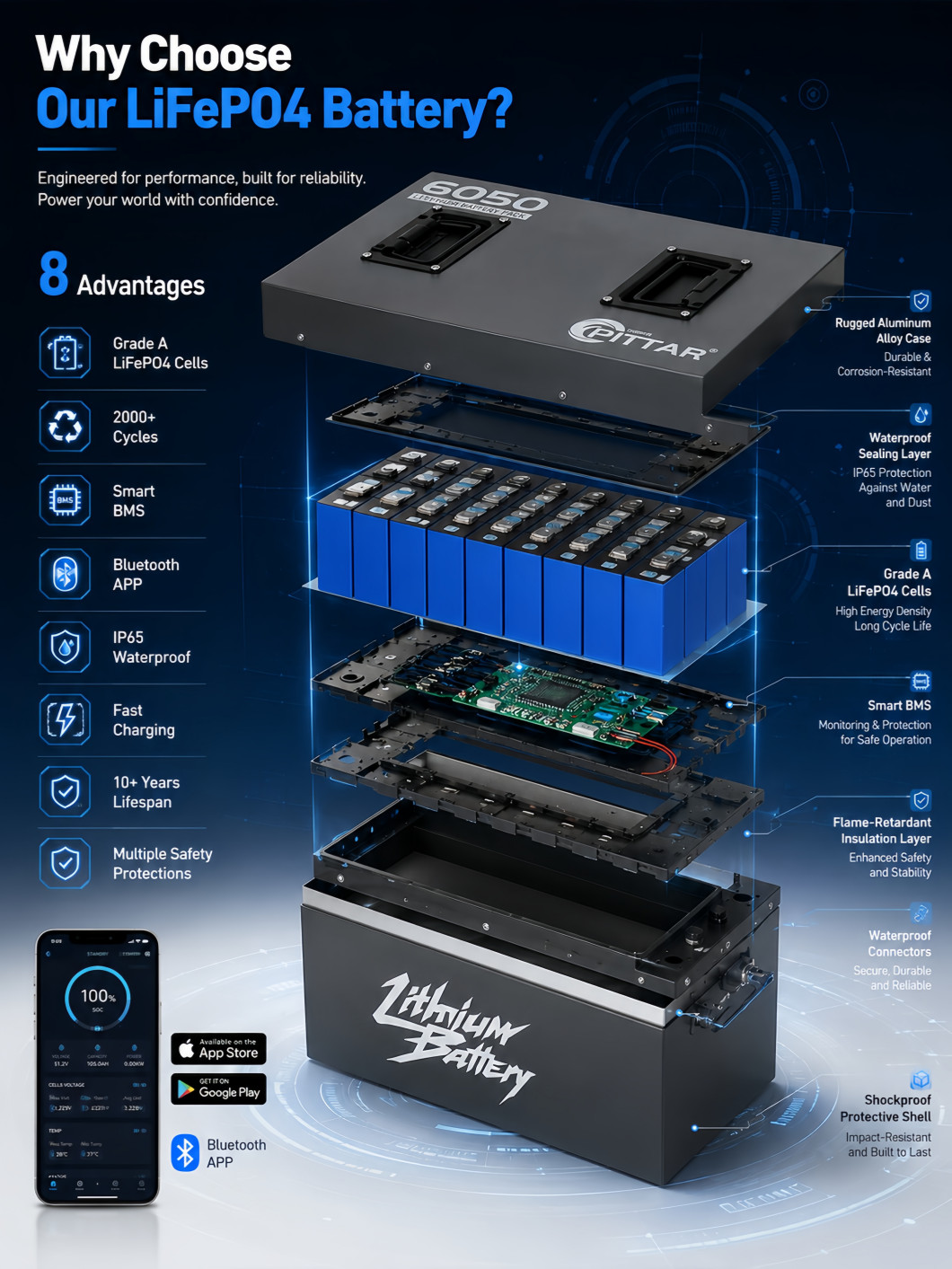

Key Features:
• High Safety – LiFePO4 chemistry, zero fire/explosion risk, 10+ years life
• Smart BMS – 8‑layer protection: overcharge, over‑discharge, overcurrent, short circuit, over/under temperature, cell balancing, load detection
• IP65 Waterproof – Fully sealed, works in rain, dust, humidity
• 3H Fast Charging – 45A max charge, full charge in ~3 hours
• Bluetooth App – Monitor voltage, temperature, capacity, cycles via smartphone
• Flexible Comms – Bluetooth std; 1‑Wire/RS485/CAN optional
• High Power Output – Supports motors up to 5000W, max 150A continuous discharge
Specifications
| Parameter | PITTAR-72120 |
| Rated Capacity | 120Ah |
| Rated Voltage | 76.8V |
| Rated Power | 9216Wh |
| Protection | IP65 |
| Dimensions | 480 × 430 × 215 mm |
| Weight | 68.35 kg |
| Compatible Motor | ≤ 5000W |
| Max Charge / Discharge | 45A / 150A |
| Battery Type | LiFePO4 (24S1P) |
| BMS | Jiabaida Smart BMS |
| Communication | Bluetooth / 1-Wire / RS485 / CAN |
| Cycle Life | 3000+ cycles |
Applications
· Electric motorcycles
· High-power electric scooters
· Electric three-wheelers
· High-performance e-bikes
· Custom EV conversions
Competitive Advantage
| Advantage | Benefit |
| Grade A LiFePO4 Cells | 3000+ cycles, 10+ years |
| Bluetooth Smart BMS | Real-time monitoring |
| IP65 Rated | Works in all weather |
| 3-Year Warranty | Business peace of mind |
| 3H Fast Charging | Less downtime |
| Factory Direct | Competitive pricing |
