PITTAR HT Series 12V High Temperature VRLA Battery (70Ah-200Ah) – Long Life, AGM Technology, Standby & Cycle Use
- Overview
- Quick Detail
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
The PITTAR HT series is a premium range of high-temperature valve-regulated lead-acid (VRLA) batteries, designed for reliable performance in demanding environments. With a robust 15-year design life in float charging service, these batteries utilize advanced AGM (Absorbent Glass Mat) valve-regulated technology and high-purity raw materials. This ensures high consistency, excellent performance, and a reliable standby service life, even under elevated temperature conditions. The HT series meets multiple international standards, including IEC, JIS, BS, GB/T, and YD/T, making it a trusted choice for critical power backup applications.
Quick Detail
· Product Name: High Temperature Series Valve Regulated Lead Acid (VRLA) Battery
· Main Application: Standby power for UPS, telecommunications, solar energy storage, and emergency lighting systems.
· Core Specification: 12V, capacities from 70Ah to 200Ah (C10), 15-year design life in float service.
Applications
· Uninterruptible Power Supplies (UPS)
· Telecommunications Systems
· Solar and Renewable Energy Storage
· Emergency Lighting and Alarm Systems
· Security Systems
· General Standby Power
Specifications
| Model | Voltage (V) | Capacity (C10, Ah) | Weight (kg) | Max. Charge Current (A) | Max. Discharge Current (A) | Internal Resistance (mΩ) |
| HT12-70 | 12 | 70 | 23.5 | 21 | 700 | 5.8 |
| HT12-80 | 12 | 80 | 30.5 | 24 | 800 | 5.2 |
| HT12-90 | 12 | 90 | 31.0 | 27 | 900 | 5.2 |
| HT12-100 | 12 | 100 | 34.0 | 30 | 1000 | 5.0 |

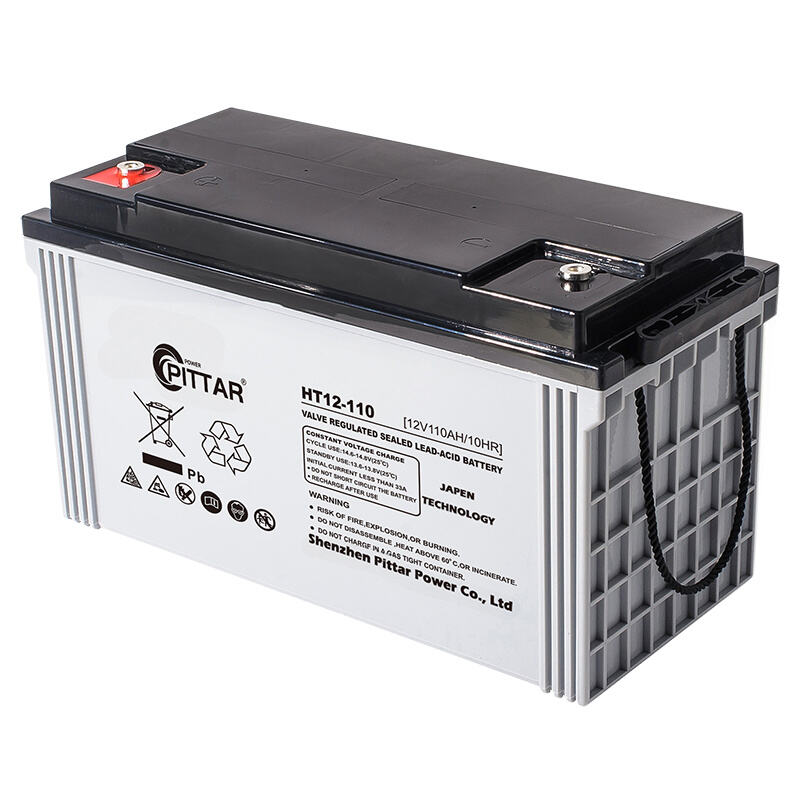

| HT12-110 | 12 | 110 | 35.5 | 33 | 1100 | 4.8 |
| HT12-130 | 12 | 130 | 43.0 | 39 | 1300 | 4.5 |
| HT12-160 | 12 | 160 | 52.0 | 48 | 1600 | 4.2 |

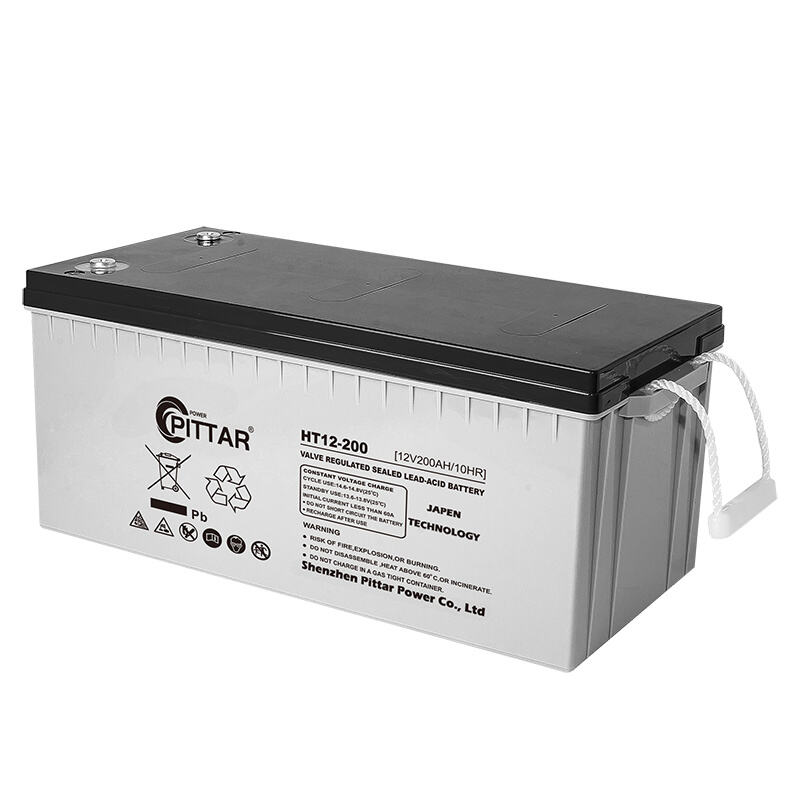

| HT12-200 | 12 | 200 | 63.0 | 60 | 2000 | 4.0 |
Competitive Advantage
· Extended Service Life: 15-year design life in float service reduces total cost of ownership.
· High Temperature Performance: Specifically designed for reliable operation in high-temperature environments.
· High Consistency: Advanced AGM technology and high-purity materials ensure uniform performance across all cells.
· Low Self-Discharge: Can be stored for up to 6 months at 25°C without recharging, simplifying maintenance.
· Global Compliance: Meets major international standards (IEC, JIS, BS, GB/T, YD/T), ensuring wide applicability.
