Lithium Battery vs Gel Battery

Jun 05, 2026

The Lithium Battery vs Gel Battery comparison is important for anyone choosing batteries for solar energy storage, home backup, RV systems, marine power, portable power stations, or off-grid installations. Gel batteries are sealed lead acid batteries with a gelled electrolyte, valued for spill resistance and low maintenance. Lithium batteries, especially LiFePO4 batteries, offer lighter weight, longer cycle life, faster charging, higher usable capacity, and stronger efficiency in many deep-cycle applications.

For B2B battery buyers, solar energy distributors, home energy storage users, RV and marine owners, and off-grid system installers, the right choice depends on cycling frequency, operating temperature, installation space, budget, charging equipment, and total cost of ownership.

This article provides a balanced Gel Battery vs Lithium Battery comparison while supporting the lithium battery pillar guide [What Is a Lithium Battery?]. For background on lithium chemistry, see [What Is LiFePO4 Battery?] and [Types of Lithium Batteries Explained].

Lithium Battery vs Gel Battery.png

___________________________________________________________________

What Is a Lithium Battery?

A lithium battery is a rechargeable battery that uses lithium-based chemistry to store and release electrical energy. In solar storage, RV, marine, home backup, and portable power applications, many lithium batteries use LiFePO4 chemistry because it provides strong safety, long cycle life, and reliable deep-cycle performance.

Lithium batteries are popular because they can deliver more usable energy from a smaller and lighter battery pack. They also support faster charging and generally require less maintenance than lead acid battery types.

For buyers comparing lithium chemistries, link to [Difference Between Lithium-Ion and LiFePO4].

___________________________________________________________________

What Is a Gel Battery?

A gel battery is a sealed lead acid battery that uses a silica-based gel electrolyte instead of free-flowing liquid acid. The gel structure helps reduce spilling risk and makes the battery suitable for certain deep-cycle and standby applications.

Gel batteries are used in solar systems, mobility equipment, marine applications, UPS backup, emergency lighting, and off-grid power systems. They are often chosen when buyers want a sealed battery with lower maintenance than flooded lead acid.

However, gel batteries are still lead acid batteries. They are heavier than lithium batteries, charge more slowly, and require careful voltage control. Overcharging can create gas pockets in the gel electrolyte and reduce performance.

___________________________________________________________________

Key Differences Between Lithium and Gel Batteries

The main difference in a Lithium Battery Compared to Gel Battery is how each technology performs under repeated deep-cycle use. Lithium batteries are generally stronger for frequent cycling, faster charging, and space-limited installations. Gel batteries can still work well in low-cost or moderate-duty systems where charging is carefully controlled.

Factor	Lithium Battery / LiFePO4	Gel Battery
Battery family	Lithium-ion chemistry	Sealed lead acid
Electrolyte	Lithium electrolyte system	Gelled sulfuric acid electrolyte
Usable capacity	Higher practical depth of discharge	Lower recommended depth of discharge
Cycle life	Longer in deep-cycle use	Moderate, depends on DoD and charging
Weight	Lighter	Heavier
Charging speed	Faster with compatible equipment	Slower and voltage-sensitive
Efficiency	Higher	Lower
Maintenance	Low maintenance	Low maintenance, but charging-sensitive
Upfront cost	Higher	Lower
Best fit	Solar, RV, marine, home backup, portable power	Budget standby, light solar, low-current uses

For a broader lead-acid comparison, see [LiFePO4 vs Lead Acid Battery] and [Lithium Battery vs AGM Battery].

___________________________________________________________________

Energy Density Comparison: Lithium Battery vs Gel Battery

Energy density describes how much energy a battery can store relative to size or weight. Lithium batteries usually provide higher practical energy density than gel batteries.

In real installations, this means a lithium battery can often deliver more usable energy in a smaller footprint. That matters for wall-mounted home backup systems, RV battery compartments, marine house banks, and portable power products.

Gel batteries are bulkier and heavier for the same usable energy. They may still be acceptable in stationary systems where space and weight are not major constraints.

___________________________________________________________________

Weight Comparison

Weight is a major factor in RV, marine, and portable systems. Gel batteries contain lead plates, making them significantly heavier than lithium alternatives.

Application	Why Weight Matters	Better Fit
RV systems	Payload and storage space are limited	Lithium
Marine house banks	Weight affects handling and vessel balance	Lithium
Portable power stations	Users need easy carrying	Lithium
Home backup	Lighter batteries simplify wall or rack installation	Lithium
Low-cost fixed backup	Weight may be less important	Gel may work

For mobile applications, lower weight can improve installation flexibility and product usability.

___________________________________________________________________

Cycle Life Comparison

Cycle life is a key part of any Deep Cycle Battery Comparison. Gel batteries can support deep-cycle use better than some flooded lead acid batteries, but they are still more sensitive to depth of discharge and charging conditions than lithium batteries.

LiFePO4 batteries are designed for repeated deep-cycle operation. In daily-use applications such as solar energy storage, RV power, and home backup, this can reduce replacement frequency and improve lifecycle value.

Cycle life depends on:

Depth of discharge.Charging voltage.
Operating temperature.
Battery quality.
Charge controller settings.
Discharge rate.

For broader lifespan education, link to [How Long Does a Lithium Battery Last?].

___________________________________________________________________

Charging Speed Comparison

Lithium batteries usually charge faster than gel batteries when paired with compatible charging equipment. This is important for solar systems, off-grid cabins, RVs, marine charging, and portable energy systems.

Gel batteries require careful voltage control. Overcharging can damage the gel electrolyte structure, while undercharging can reduce usable performance over time. They often charge more slowly, especially near full capacity.

Charging Factor	Lithium Battery	Gel Battery
Charge acceptance	Higher with compatible charger	More limited
Solar recharge speed	Faster	Slower
Voltage sensitivity	Managed by BMS and charger profile	Very sensitive to overvoltage
Partial charging tolerance	Better	More limited
Charger requirement	Lithium-compatible settings	Gel-specific lead acid settings

Correct charger configuration is essential for both battery types.

___________________________________________________________________

Depth of Discharge (DoD) Comparison

Depth of discharge, or DoD, describes how much battery capacity is used before recharging. Lithium batteries generally support deeper usable discharge than gel batteries without the same lifespan penalty.

Gel batteries can be deep-cycle batteries, but frequent deep discharge usually reduces service life. This means a gel battery’s rated capacity may not equal practical usable capacity in long-term daily cycling.

Featured-snippet answer: Lithium batteries usually provide more usable capacity than gel batteries because they can support deeper depth of discharge with better cycle life.

___________________________________________________________________

Efficiency Comparison

Efficiency matters because not all stored energy can be recovered after charging. Lithium batteries generally provide higher round-trip efficiency than gel batteries, meaning more stored energy becomes usable output.

Metric	Lithium Battery	Gel Battery
Round-trip efficiency	Higher	Lower
Voltage stability	Stronger under load	Drops more as charge decreases
Deep-cycle performance	Strong	Moderate
Solar energy utilization	Better for daily cycling	Lower in frequent cycling
Runtime consistency	More stable	More variable under load

For solar and backup applications, higher efficiency helps increase usable runtime and improve system economics.

___________________________________________________________________

Maintenance Requirements

Both gel and lithium batteries are low-maintenance compared with flooded lead acid batteries. Gel batteries are sealed and do not require watering. Lithium batteries also require little routine maintenance and use a BMS for protection.

The difference is operational tolerance. Gel batteries need careful charging and should not be overcharged. Lithium batteries also require correct charging settings, but the BMS helps monitor voltage, current, and temperature.

For commercial projects, lower maintenance can reduce service labor, customer support needs, and downtime.

___________________________________________________________________

Safety Comparison

Both lithium and gel batteries can be safe when properly designed, installed, charged, and used. They have different safety considerations.

Gel batteries are sealed and spill-resistant, but they are still lead acid batteries. Incorrect charging can cause gas pockets or pressure issues. They also contain lead and acid-based materials.

LiFePO4 batteries are known for strong thermal stability compared with many lithium chemistries. A quality LiFePO4 pack includes BMS protection against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes.

For safety-focused content, link to [Are Lithium Batteries Safe?].

___________________________________________________________________

Temperature Performance Comparison

Temperature affects both lithium and gel batteries. High temperatures can accelerate aging, while low temperatures can reduce performance.

Gel batteries often tolerate standby conditions well but can suffer if exposed to high heat or incorrect charging voltage. Cold temperatures reduce available capacity and charging performance.

Lithium batteries provide strong performance across many applications, but low-temperature charging must be managed carefully. Many LiFePO4 systems include BMS protection, and some packs include heating options for cold environments.

Temperature Factor	Lithium Battery	Gel Battery
High temperature aging	Must be managed	Must be managed
Low temperature discharge	Reduced performance	Reduced performance
Low temperature charging	Requires protection	Slower charging
Thermal control	BMS-supported in quality packs	Charger and environment dependent

___________________________________________________________________

Cost Comparison

Gel batteries usually cost less upfront than lithium batteries. This makes them attractive for budget-sensitive buyers and moderate-duty applications.

Lithium batteries cost more initially but can provide better long-term value when the system cycles frequently or when weight, space, and efficiency matter.

Cost Factor	Lithium Battery	Gel Battery
Upfront price	Higher	Lower
Usable capacity	Higher	Lower practical usable capacity
Replacement frequency	Lower in deep-cycle use	Higher under frequent cycling
Maintenance cost	Low	Low but charge-sensitive
Efficiency loss	Lower	Higher
Long-term value	Strong for active-use systems	Strong for low-budget standby systems

The lowest upfront cost is not always the lowest lifetime cost.

___________________________________________________________________

Total Cost of Ownership Analysis

Total cost of ownership includes purchase price, usable capacity, cycle life, replacement labor, maintenance, downtime, charging efficiency, and warranty risk.

A lithium battery can be more economical over time if it lasts longer, provides more usable capacity, and reduces replacement frequency. A gel battery can be cost-effective when the system is used lightly and the budget is limited.

Scenario	Better TCO Candidate	Reason
Daily solar cycling	Lithium	Higher efficiency and longer cycle life
Occasional standby backup	Gel or lithium	Depends on budget and reliability target
RV full-time use	Lithium	Weight, DoD, and charging advantages
Marine house bank	Lithium	Lower weight and stable deep-cycle performance
Low-cost off-grid system	Gel may work	Lower upfront cost if cycling is moderate

Soft CTA: Explore LiFePO4 battery products

If you are evaluating Gel Battery Replacement with Lithium, explore our LiFePO4 battery products to compare voltage platforms, capacity options, BMS protection, and long-term lifecycle value.

___________________________________________________________________

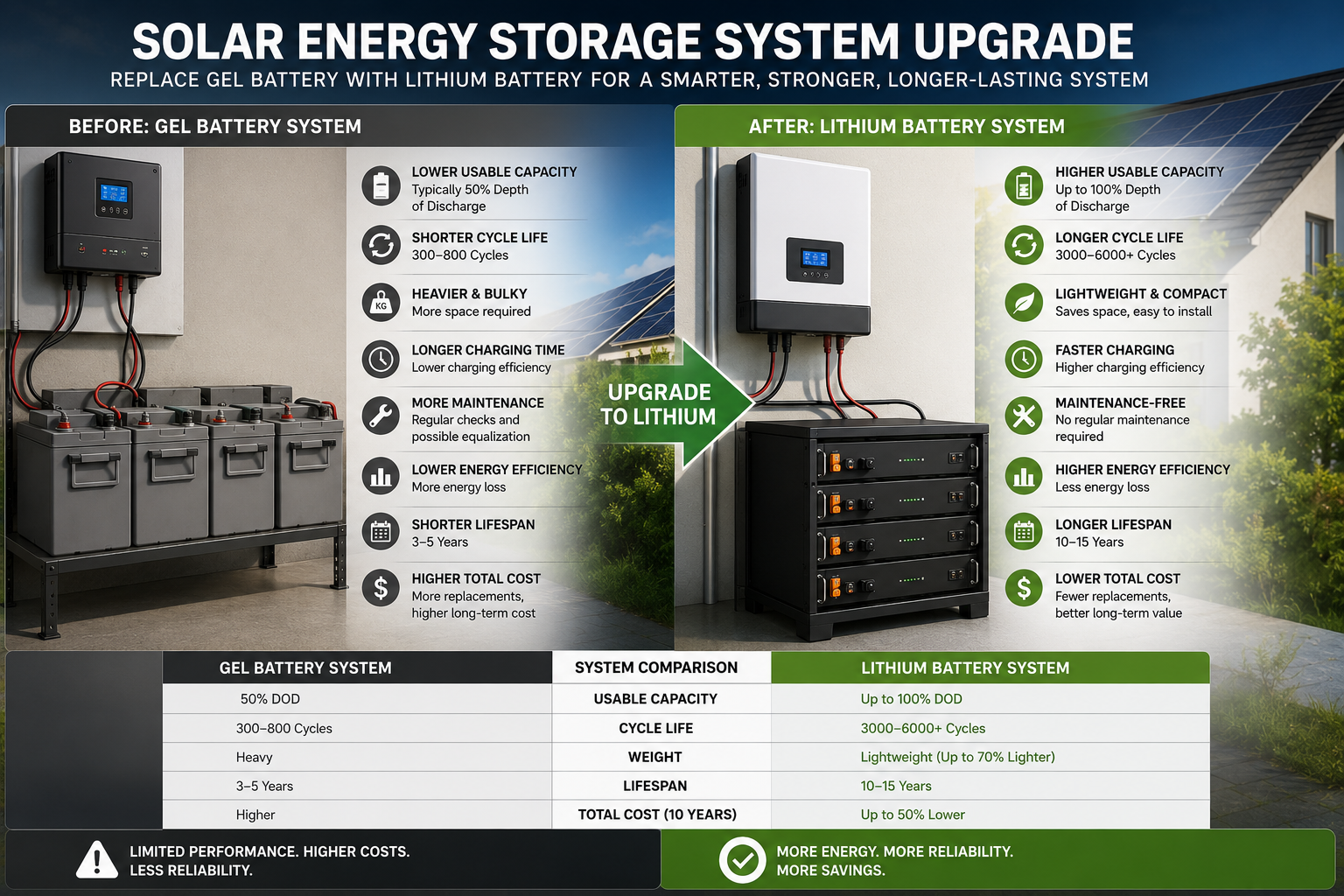

Lithium Battery vs Gel Battery for Solar Energy Storage

For solar energy storage, lithium is usually the better choice when the system cycles daily. A Best Battery for Solar Storage should deliver high usable capacity, efficient charging, long cycle life, and strong inverter compatibility.

Gel batteries can work in smaller solar systems where budget is tight and charging is carefully controlled. However, they charge more slowly and are less efficient in frequent cycling.

For solar buying guidance, link to [Best Lithium Battery for Solar Storage].


Soft CTA: Explore solar storage battery solutions

For solar installers and energy storage distributors, our solar storage battery solutions are designed for deep-cycle operation, inverter compatibility, scalable capacity, and long-term energy performance.

___________________________________________________________________

Lithium Battery vs Gel Battery for Home Backup Power

For home backup power, lithium batteries are usually preferred in modern energy storage systems because they offer higher usable capacity, better efficiency, lower weight, and longer cycle life.

A Lithium Battery for Home Backup can store energy from solar panels or the grid and deliver power during outages. Gel batteries may still work for simple standby backup where cycling is rare and upfront budget is limited.

For home storage planning, link to [Home Energy Storage Battery Guide].

Soft CTA: Explore home energy storage systems and portable power station batteries

If you are building residential backup systems or portable power products, explore our home energy storage systems and portable power station batteries for reliable runtime, safe operation, and flexible capacity planning.

___________________________________________________________________

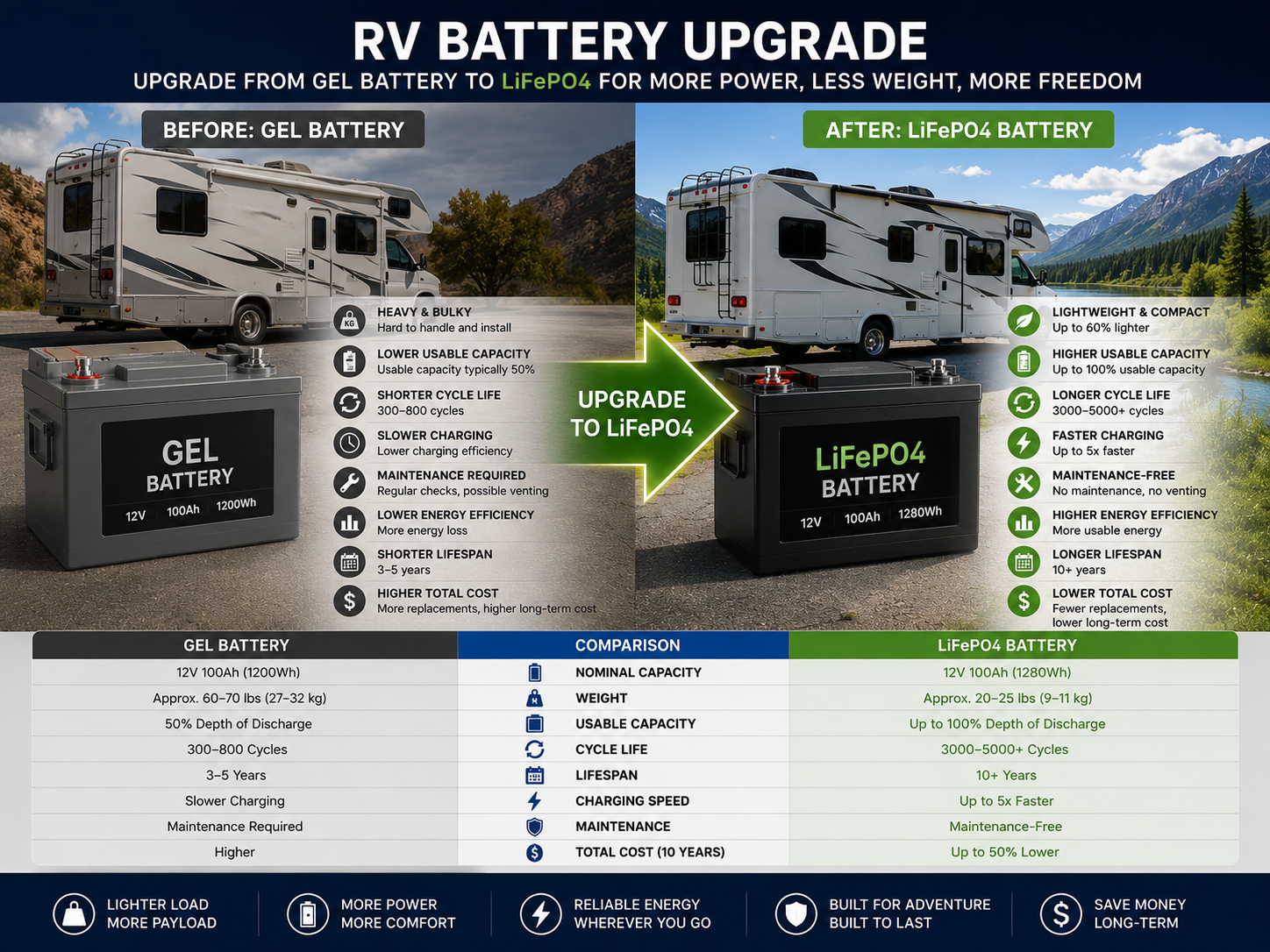

Lithium Battery vs Gel Battery for RV and Marine Applications

For RV and marine systems, lithium is usually the better long-term option. A Lithium Battery for RV provides lighter weight, deeper usable capacity, faster charging, and more stable performance for off-grid travel.

Gel batteries may be used in RVs or boats when budget is limited and power demand is moderate. However, full-time RV users and marine house bank users often benefit from lithium upgrades because they rely on batteries daily.

For marine systems, buyers should confirm charger settings, alternator protection, BMS limits, fusing, enclosure design, and installation requirements.


___________________________________________________________________

Lithium Battery vs Gel Battery for Portable Power Stations

A Portable Power Station Battery must be compact, efficient, safe, and easy to recharge. Lithium batteries are the clear choice for modern portable power stations because gel batteries are too heavy and have lower practical energy density.

LiFePO4 is especially popular in larger portable power stations because it offers long cycle life and stable output. Other lithium-ion chemistries may be used where ultra-lightweight design is the top priority.

For product navigation, link to [Portable Power Station].

___________________________________________________________________

Is It Worth Upgrading from Gel Battery to Lithium?

Upgrading from gel to lithium is often worth it when the battery cycles frequently, weight matters, space is limited, or long-term reliability is more important than the lowest upfront cost.

Upgrade is usually attractive for:

Solar storage systems.
RV and marine battery banks.
Home backup systems.
Portable power station products.
Off-grid systems with daily cycling.

Gel may still be reasonable when:

The application is low-cycle standby.
Budget is the main constraint.
Existing charging equipment is gel-specific.
Weight and efficiency are not major concerns.

Before upgrading, confirm voltage, charger profile, inverter compatibility, BMS limits, cabling, fusing, and installation requirements.

___________________________________________________________________

Frequently Asked Questions

Is a lithium battery better than a gel battery?

A lithium battery is usually better for frequent deep-cycle applications because it offers longer cycle life, lighter weight, faster charging, higher usable capacity, and better efficiency. A gel battery may still be suitable for lower-cost standby or moderate-use systems.

What is the main difference between gel and lithium batteries?

The main difference is chemistry and practical performance. A gel battery is a sealed lead acid battery with gelled electrolyte, while a lithium battery uses lithium-based chemistry and usually provides more usable energy, lower weight, faster charging, and longer cycle life.

Can I replace a gel battery with a lithium battery?

In many systems, yes, but you must verify charger settings, voltage compatibility, BMS limits, wiring, fusing, and equipment requirements before replacing a gel battery with lithium.

Is LiFePO4 better than gel battery?

LiFePO4 is often better than gel battery for solar storage, RV, marine, home backup, and portable power applications because it supports deeper cycling, faster charging, lower weight, and longer service life.

Which battery is best for solar storage?

Lithium, especially LiFePO4, is often the best battery for solar storage because it provides high usable capacity, efficient charging, long cycle life, and strong deep-cycle performance.

Which battery is better for RV use?

Lithium is usually better for RV use because it is lighter, charges faster, and provides more usable capacity. Gel batteries can still work for occasional-use RVs with limited power demand.

Are gel batteries safer than lithium batteries?

Gel batteries and lithium batteries have different safety considerations. Gel batteries are sealed lead acid batteries, while LiFePO4 lithium batteries offer strong thermal stability and BMS protection. Product quality and correct installation are critical for both.

___________________________________________________________________

Conclusion

The Lithium Battery vs Gel Battery decision depends on application, budget, cycling frequency, weight limits, charging equipment, and expected service life. Gel batteries remain useful in low-cost, moderate-duty, or standby applications where cycling is limited and careful charging is available. Lithium batteries are usually stronger for solar energy storage, home backup, RV and marine systems, portable power stations, and off-grid applications that cycle frequently.

Lithium batteries offer higher usable capacity, lighter weight, faster charging, better efficiency, longer cycle life, and lower maintenance in active-use systems. For buyers comparing Gel Battery vs Lithium Battery options, the most important question is not only upfront price. It is total cost per usable kilowatt-hour over the full service life.

If your project requires daily cycling, compact design, dependable runtime, and long-term value, lithium—especially LiFePO4 —is usually the stronger platform.
